SOLD! CEF .020 Horseshoe Backplate

Post  Admin Wed Sep 18, 2019 2:54 pm

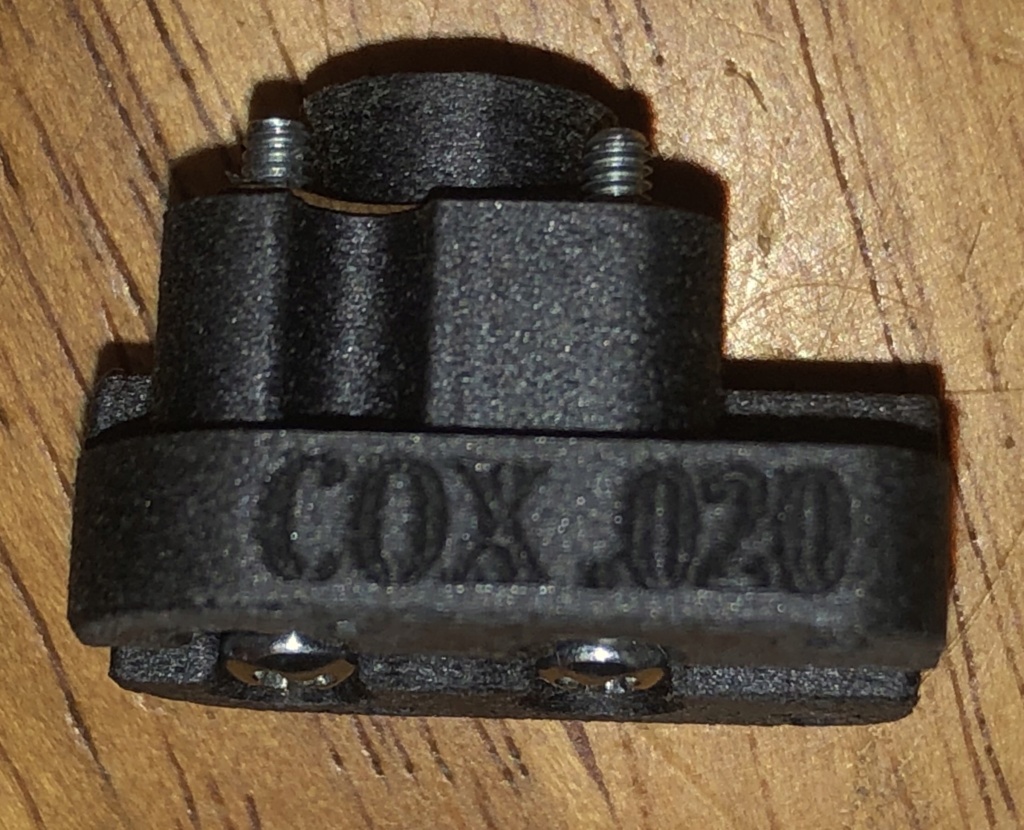

Exclusive CEF 2019 .020 Horseshoe Backplate
CEF .020 Horseshoe Backplate 5ac4f510
.020 front end and needle valve assembly not included, shown for demonstration purposes only

Ever wished you could mount your Pee Wee .020 like a Killer Bee or SureStart? Ever wanted to use an external tank for longer run times? Need another conversation piece (who doesn't)?

Designed and produced by longtime forum member Jason_WI (Jason Birnschein). More than seven months of development and testing. 3D printed from DuPont carbon fiber reinforced Zytel, withstanding temperatures up to 150°C. Each backplate was hand finished and carefully inspected.

Includes: reed, retainer, crankcase gasket, crankcase screws, and mounting screws. Does NOT include a needle valve assembly! Requires a 128 TPI needle valve assembly sourced from a .049 "postage stamp" backplate. For best results and the ease of tuning, using an 80 TPI needle valve assembly supplied with the SureStart and other horseshoe backplate product engines is not recommended.  Arrow Update: With further testing, a short stem 80 TPI needle did produce satisfactory results. See this post for more information: https://www.coxengineforum.com/t13351p25-cef-020-horseshoe-backplate#172040



Click on images to view larger


Note on needle valves: For the ease of tuning and best stability, a 128 TPI needle valve assembly will be desired. This must be supplied by the modeler and is not included with the backplate. These needle valves are most commonly found in early "postage stamp" product engines. Below is a picture showing the difference between a 80 TPI (right) and 128 TPI (left) needle.  Arrow Update: With further testing, a short stem 80 TPI needle did produce satisfactory results. See this post for more information: https://www.coxengineforum.com/t13351p25-cef-020-horseshoe-backplate#172040



Watch it in action!


Price for each backplate is only $15 with FREE shipping!*
SOLD OUT
All proceeds go towards funding CEF.

Limited quantity available! Only 25 produced!

CEF .020 Horseshoe Backplate Btn_bu10

*Free shipping for US addresses only.  Please contact for international shipping.



Last edited by Admin on Sat Nov 23, 2019 1:32 pm; edited 7 times in total
