Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Page 2 of 5 Previous  1, 2, 3, 4, 5  Next

Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  MauricioB Thu Jul 28, 2022 12:34 am

let's go with some progress....

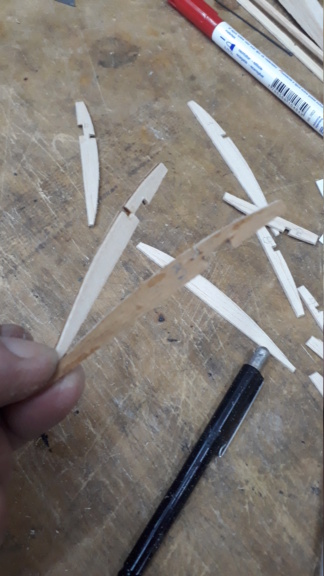

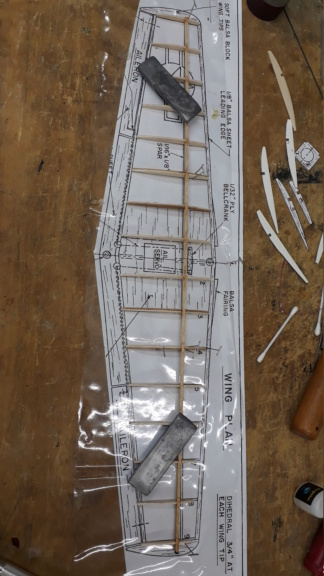

Here I show the pawn sockets.
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2084
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2085

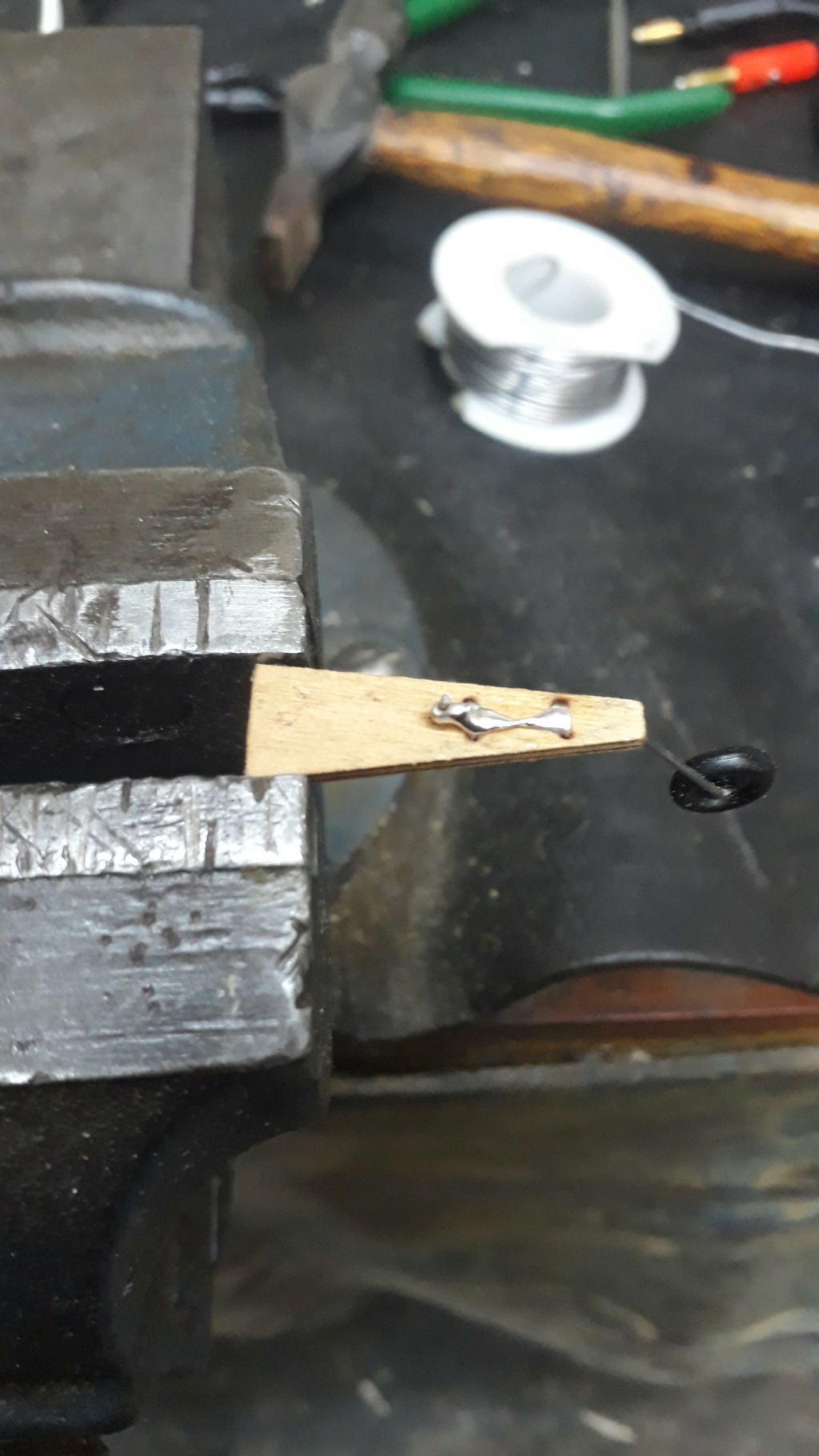

Here I show you the tail train, it is held by copper wire and once tied, I put tin to ensure that everything is very firm.
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2086
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2087
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2088
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2089
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2090
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2091
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2092

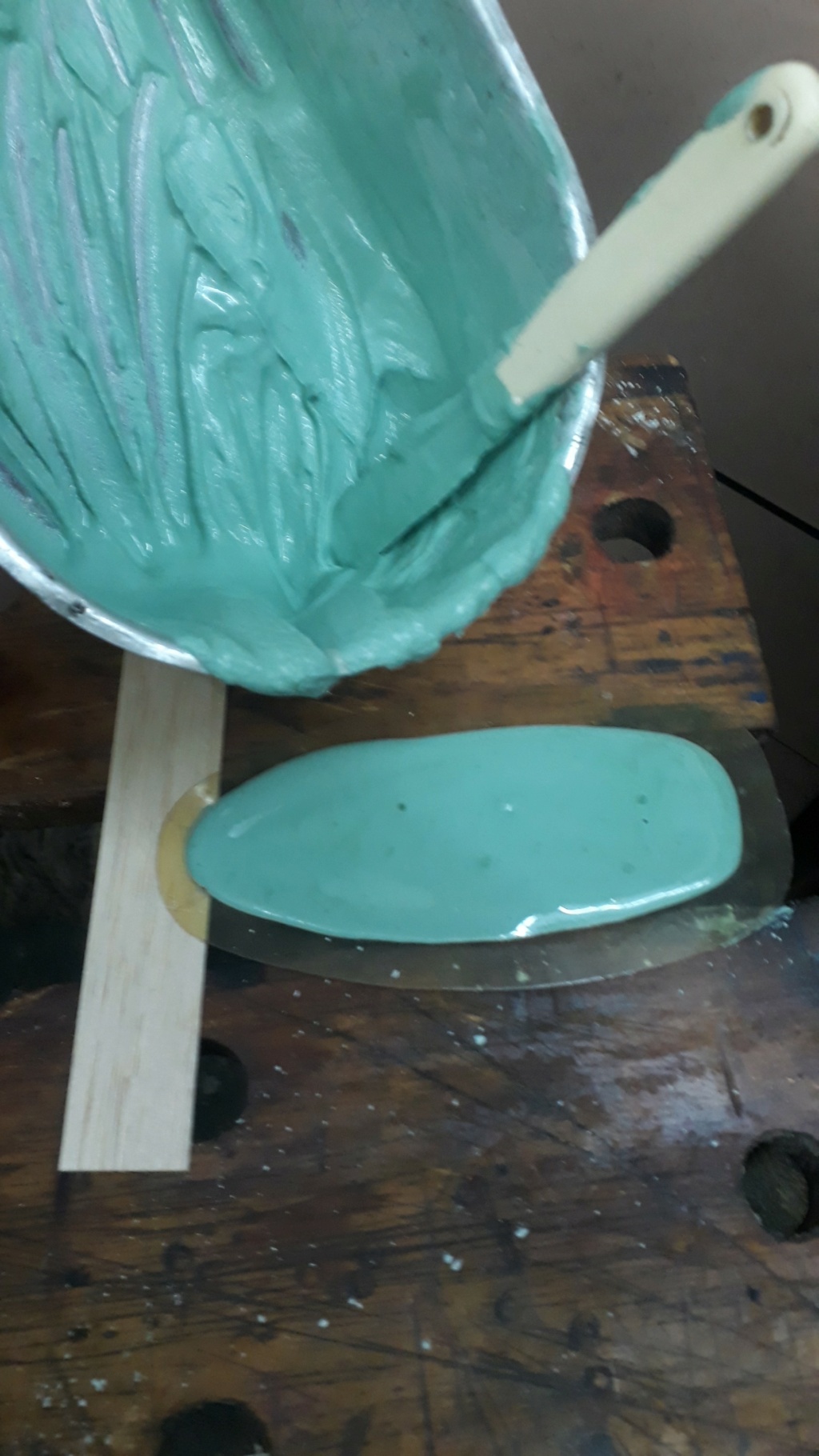

Using a commercial cabin, I am making a dental plaster matrix, with it I will make my own cabin, modifying it in size to fit the fuselage.
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2093
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2094
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2095

The nose of the fuselage, everything seems to be going well so far.
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2096
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2097
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2098

If you happen to see a P-51 Mustang in this photo, then I'm on the right track!...lol I Love This Forum!  I Love This Forum!
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2099


Last edited by MauricioB on Tue Aug 09, 2022 4:34 pm; edited 1 time in total
MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  balogh Thu Jul 28, 2022 12:55 am

Excellent! I see much more than just a P51 in the photos...precision, enthusiasm and commitment to quality..
balogh
balogh
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 4958
Join date : 2011-11-06
Age : 66
Location : Budapest Hungary

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  MauricioB Thu Jul 28, 2022 7:11 am

balogh wrote:Excellent! I see much more than just a P51 in the photos...precision, enthusiasm and commitment to quality..
Thank you for your evaluation friend. Thanks again! Hungary Argentina
MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  getback Thu Jul 28, 2022 8:49 am

Man that is Looking Great !! carry on RC Plane I Love This Forum!
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10441
Join date : 2013-01-18
Age : 67
Location : julian , NC

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  MauricioB Thu Jul 28, 2022 9:12 am

getback wrote:Man that is Looking Great !! carry on  RC Plane  I Love This Forum!
Eric!, dear friend, you are always there!, thank you for that! United States Argentina
MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  MauricioB Sun Jul 31, 2022 1:17 am

then we have the cabin!
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2100
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2101
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2102
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2103
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2104
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2105
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2106
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2107
I have placed an adhesive tape to temporarily hold.
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2108
MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  balogh Sun Jul 31, 2022 1:21 am

Mauricio, do you use a heat gun, or, a simple haIrdryer to shape the plastic cabin on the blue mold? Is the canopy material some simple sheet cut from an empty soda bottle that softens when heated?
balogh
balogh
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 4958
Join date : 2011-11-06
Age : 66
Location : Budapest Hungary

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  MauricioB Sun Jul 31, 2022 1:36 am

balogh wrote:Mauricio, do you use a heat gun, or, a simple haIrdryer to shape the plastic cabin on the blue mold? Is the canopy material some simple sheet cut from an empty soda bottle that softens when heated?

Andras, to your questions:
I use a heat gun, a hair dryer is NOT powerful enough.
Yes, it is a soda bottle, it can also be soft drinks, the material is called PET.
Here I leave a video of my authorship with procedural steps.
In the video it is a wooden matrix, I apply paint to observe details that I later remove so that it does not stick when giving heat with the gun.
In the case of the matrix for the micro P-51, the matrix is made of dentist's plaster.

MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  davidll1984 Sun Jul 31, 2022 7:31 am

Moricio my friend I watch silently but I am no less impressed once again very nice work I can't wait to see it fly RC Plane RC Plane Airplane cheers
davidll1984
davidll1984
Diamond Member
Diamond Member

Posts : 2327
Join date : 2020-02-12
Age : 39
Location : shawinigan

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  MauricioB Thu Aug 04, 2022 4:25 pm

davidll1984 wrote:Moricio my friend I watch silently but I am no less impressed once again very nice work I can't wait to see it fly RC Plane RC Plane Airplane cheers

Dear friend!, thanks for leaving your comment....I'm working on this micro model....my fingers stick hahaha!, everything is so small there....I'll follow the process! Canada Argentina
MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  Yabby Fri Aug 05, 2022 3:57 am

Goodaye Moricio, what a great method/technique using commonly available equipment and materials to produce a custom component! Great thinking and problem solving/solution you have developed!!! Thanks for sharing! Hand Shake sunny cheers
This Site Rocks!

Airplane sunny

Yabby
Yabby
Yabby
Platinum Member
Platinum Member

2022 Supporter

2023 Supporter

Posts : 712
Join date : 2021-06-08
Location : Yorke Peninsula South Australia

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  MauricioB Fri Aug 05, 2022 5:05 am

Yabby wrote:Goodaye Moricio, what a great method/technique using commonly available equipment and materials to produce a custom component! Great thinking and problem solving/solution you have developed!!! Thanks for sharing! Hand Shake sunny cheers
This Site Rocks!

Airplane sunny

Yabby

Hello Yabby, thank you very much for your words, I am very glad that it is useful for the forum.
Please don't take my correction of my name the wrong way:
Mauricio (correct)
Moricio (not correct)
Greetings to you!... Australia Argentina
MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  MauricioB Fri Aug 05, 2022 5:14 am

ok, this model aero plane doesn't come with a landing gear, so as I go along, I'm adding a couple of kiri wood ribs as reinforcement, just to place a support for the main gear legs.
I could leave it without landing gear, but I want to avoid breaking propellers when landing, since in my country it is very complicated to acquire spare parts and accessories.
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2109
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2110
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2111
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2112
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2113
the transmission to the ailerons:
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2114
MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  Yabby Fri Aug 05, 2022 5:26 am

Goodaye Mauricio,

No problem at all. Fully understand! Names have one spelling and thats the correct one. Thank you for advising me such that I get it correct. Thumbs Up Hand Shake sunny

Yabby
Yabby
Yabby
Platinum Member
Platinum Member

2022 Supporter

2023 Supporter

Posts : 712
Join date : 2021-06-08
Location : Yorke Peninsula South Australia

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  getback Fri Aug 05, 2022 5:27 am

Hello , the canopy came out nice but let me ask , was the dental plaster hard to sand / shape ?
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10441
Join date : 2013-01-18
Age : 67
Location : julian , NC

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  MauricioB Fri Aug 05, 2022 5:34 am

getback wrote:Hello , the canopy came out nice but let me ask , was the dental plaster hard to sand / shape ?
Eric, dear friend, as I show here in this link, the matrix is made of plaster, but copying an original cabin, therefore it is removed from the mold and there is no need to sand.
Similarly, if it has to be sanded, once the plaster is dry, it can be sanded perfectly.
https://www.coxengineforum.com/t16476p25-another-cox-010-converted-to-r-c-p-51-mustang#213451
MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  MauricioB Fri Aug 05, 2022 5:36 am

Yabby wrote:Goodaye Mauricio,

No problem at all. Fully understand! Names have one spelling and thats the correct one. Thank you for advising me such that I get it correct. Thumbs Up Hand Shake sunny

Yabby

Yes, if I understand perfectly that this happens, it happens to me too.
Thank you friend!
MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  MauricioB Tue Aug 09, 2022 4:37 pm

PEEEEEEE...55555555111111111.....MMMMUUUUUSSSSTAAANNNGGGGG!!!!
start to appear! Very Happy  Very Happy  Very Happy
Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 20220811
MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  balogh Tue Aug 09, 2022 5:07 pm

Mauricio, nice progress! Is your plan from Outerzone? Do you scale up or down the original design? I do not see any dimension on the plan you use.

What is the wingspan?
balogh
balogh
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 4958
Join date : 2011-11-06
Age : 66
Location : Budapest Hungary

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  MauricioB Tue Aug 09, 2022 9:43 pm

balogh wrote:Mauricio, nice progress! Is your plan from Outerzone? Do you scale up or down the original design? I do not see any dimension on the plan you use.

What is the wingspan?

thanks friend!
Yes, the plane is in outerzone. https://outerzone.co.uk/plan_details.asp?ID=2271
For the Cox .010, you should take it to a 21-inch wingspan (that's my opinion)
in the drawing for Cox .010 indicates 18 inches, but in my opinion two more inches with an additional fuel tank, will be the most appropriate measure to enjoy this aero model.
In my case, it is designed to use the original Cox .010 fuel tank and also if you want longer flights, you will carry an additional tank. In that case the original tank is only used as a motor mount
.

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Img-2115
MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  balogh Wed Aug 10, 2022 12:52 am

Thanks for the advice, Mauricio. I will check the drawing on Outerzone.

Yes, I normally use external tanks on my TeeDee 010 abd 020 engines, for longer flights.
balogh
balogh
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 4958
Join date : 2011-11-06
Age : 66
Location : Budapest Hungary

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  balogh Wed Aug 10, 2022 2:18 am

MauricioB wrote:................
For the Cox .010, you should take it to a 21-inch wingspan (that's my opinion)
in the drawing for Cox .010 indicates 18 inches, but in my opinion two more inches with an additional fuel tank, will be the most appropriate measure to enjoy this aero model.
In my case, it is designed to use the original Cox .010 fuel tank and also if you want longer flights, you will carry an additional tank. In that case the original tank is only used as a motor mount
.


.....

Mauricio,

did you just scale up the rib-to-rib distances at a ratio of 21/18, or, added extra ribs to extend the wingspan from 18 to 21 inches?
balogh
balogh
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 4958
Join date : 2011-11-06
Age : 66
Location : Budapest Hungary

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  getback Wed Aug 10, 2022 6:30 am

The Bird is coming together Thumbs Up bounce
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10441
Join date : 2013-01-18
Age : 67
Location : julian , NC

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  MauricioB Wed Aug 10, 2022 10:38 am

balogh wrote:
MauricioB wrote:................
For the Cox .010, you should take it to a 21-inch wingspan (that's my opinion)
in the drawing for Cox .010 indicates 18 inches, but in my opinion two more inches with an additional fuel tank, will be the most appropriate measure to enjoy this aero model.
In my case, it is designed to use the original Cox .010 fuel tank and also if you want longer flights, you will carry an additional tank. In that case the original tank is only used as a motor mount
.


.....

Mauricio,

did you just scale up the rib-to-rib distances at a ratio of 21/18, or, added extra ribs to extend the wingspan from 18  to 21 inches?

hello András, You must enlarge the plane in total in a proportional way.
That is, you enlarge the wing span from 18 to 21 inches and all the pieces in the plane should also be enlarged proportionally.
YOU SHOULD NOT ADD RIBS or ONLY LENGTHEN THE WINGSPAN. (I am not raising my voice, just indicating something that is very important!) Beer Cheers
It is understood?
MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  MauricioB Wed Aug 10, 2022 10:40 am

getback wrote:The Bird is coming together Thumbs Up bounce
Laughing Laughing RC Plane RC Plane Small Cox Logo Small Cox Logo Beers
MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 2 Empty Re: Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5)

Post  Sponsored content


Sponsored content


Back to top Go down

Page 2 of 5 Previous  1, 2, 3, 4, 5  Next

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
