Cox Inline Engine Silver Bullet Empty Cox Inline Engine Silver Bullet

Post  Levent Suberk Mon Jun 07, 2021 7:23 pm

Interesting prototype:

https://m.facebook.com/groups/184565475615476/permalink/986649742073708/

Cox Inline Engine Silver Bullet Screen10


Last edited by Levent Suberk on Tue Jun 08, 2021 4:29 am; edited 1 time in total
Levent Suberk
Levent Suberk
Diamond Member
Diamond Member

Posts : 2265
Join date : 2017-12-24
Location : Türkiye

Back to top Go down

Cox Inline Engine Silver Bullet Empty Re: Cox Inline Engine Silver Bullet

Post  Cribbs74 Mon Jun 07, 2021 8:01 pm

Oh wowi!

Something new! Very neat design. Wish that scan was clearer and complete so I could read the whole article. Also it could be put in our archives!
Cribbs74
Cribbs74
Moderator

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 11907
Join date : 2011-10-24
Age : 50
Location : Tuttle, OK

Back to top Go down

Cox Inline Engine Silver Bullet Empty Re: Cox Inline Engine Silver Bullet

Post  davidll1984 Mon Jun 07, 2021 9:41 pm

My gods never seen, I had never seen anything unlike Very strange is unconventional it looks like the head is the spinning part Huh...
davidll1984
davidll1984
Diamond Member
Diamond Member

Posts : 2327
Join date : 2020-02-12
Age : 39
Location : shawinigan

Back to top Go down

Cox Inline Engine Silver Bullet Empty Re: Cox Inline Engine Silver Bullet

Post  KariFS Tue Jun 08, 2021 2:59 am

It has the same principle as axial piston hydraulic motors and pumps. Hydraulic pumps and motors have an odd number of pistons though... 5, 7 or 9 usually, to make sure it will start every time.

Never seen an internal combustion engine with such a layout Huh...
KariFS
KariFS
Diamond Member
Diamond Member

Posts : 2044
Join date : 2014-10-10
Age : 53

Back to top Go down

Cox Inline Engine Silver Bullet Empty Re: Cox Inline Engine Silver Bullet

Post  Levent Suberk Tue Jun 08, 2021 4:26 am

There is a video of Profi inline engine:

https://m.facebook.com/groups/184565475615476/permalink/986755802063102/?ref=m_notif&notif_t=feedback_reaction_generic

Cox Inline Engine Silver Bullet Screen77
Levent Suberk
Levent Suberk
Diamond Member
Diamond Member

Posts : 2265
Join date : 2017-12-24
Location : Türkiye

Back to top Go down

Cox Inline Engine Silver Bullet Empty Re: Cox Inline Engine Silver Bullet

Post  OVERLORD Tue Jun 08, 2021 4:56 am

KariFS wrote:It has the same principle as axial piston hydraulic motors and pumps. Hydraulic pumps and motors have an odd number of pistons though... 5, 7 or 9 usually, to make sure it will start every time.

Never seen an internal combustion engine with such a layout Huh...

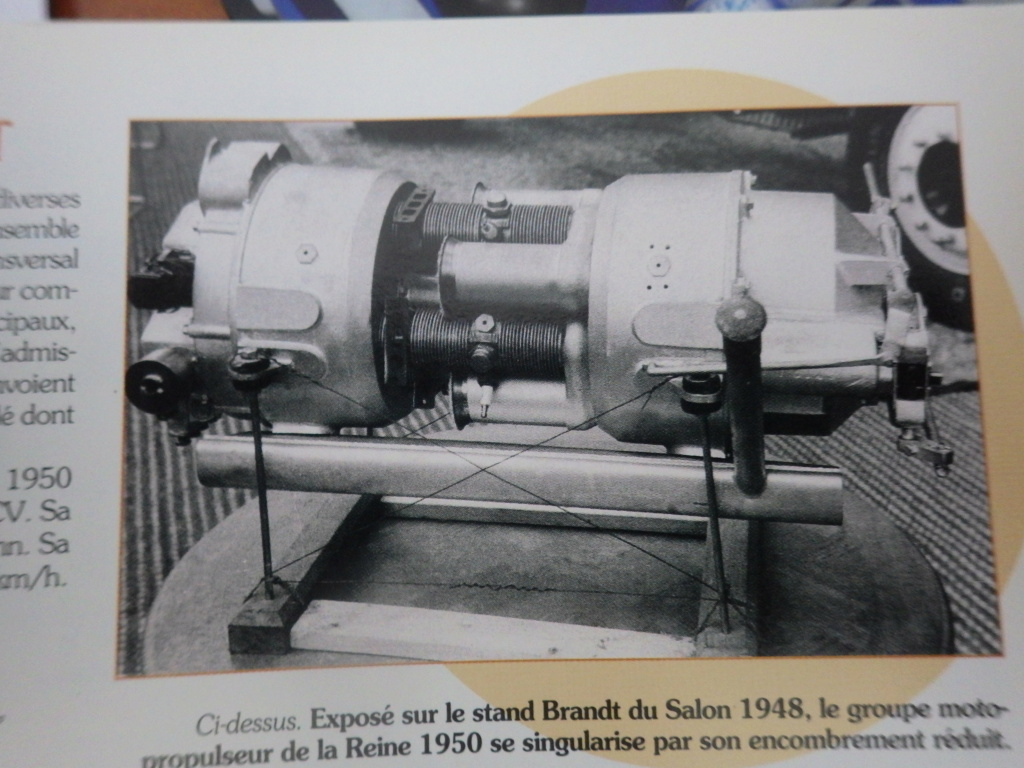

It has been done before, engines using the wobble plate principle as in hydraulic motors or pumps were around even bofore the war. I had a look in my ancient vintage car magazines: On the 1948 Paris motor show, people could discover the REINE 1950, a revolutionary car made by Mr Brandt with a little cumbersome wobble plate engine.

Cox Inline Engine Silver Bullet Imgp6640

Cox Inline Engine Silver Bullet Imgp6641

Cox Inline Engine Silver Bullet Imgp6639

Cox Inline Engine Silver Bullet Imgp6644

Cox Inline Engine Silver Bullet Imgp6642

OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1807
Join date : 2013-03-19
Age : 58
Location : Normandy, France

Back to top Go down

Cox Inline Engine Silver Bullet Empty Re: Cox Inline Engine Silver Bullet

Post  KariFS Tue Jun 08, 2021 6:13 am

Wow, looks like a two stroke with counter-pistons Very Happy

All kinds of strange things have been conceived in the past. I do remember reading about a Profi type engine, I think it was a single cylinder engine where the piston went back and forth inside a rotating cylinder Huh...



KariFS
KariFS
Diamond Member
Diamond Member

Posts : 2044
Join date : 2014-10-10
Age : 53

Back to top Go down

Cox Inline Engine Silver Bullet Empty Re: Cox Inline Engine Silver Bullet

Post  iamplanecrazy2 Tue Jun 08, 2021 8:22 am

Dan Sitter, what a guy! We owe him much!
iamplanecrazy2
iamplanecrazy2
Silver Member
Silver Member

Posts : 92
Join date : 2011-07-03
Location : Waxahachie Texas

Back to top Go down

Cox Inline Engine Silver Bullet Empty Re: Cox Inline Engine Silver Bullet

Post  Scotland421 Tue Jun 08, 2021 10:36 am

Swashplate engine. MK 46 torpedoes have a similar design
Scotland421
Scotland421
Silver Member
Silver Member

Posts : 82
Join date : 2021-03-07

Back to top Go down

Cox Inline Engine Silver Bullet Empty Re: Cox Inline Engine Silver Bullet

Post  944_Jim Tue Jun 08, 2021 9:55 pm

The article is by Dan Sitter. Isn't that California Dan on eBay? Or do I have some names mixed up?

_________________
Never enough time to build them all...always enough time to smash them all!
944_Jim
944_Jim
Diamond Member
Diamond Member

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 2022
Join date : 2017-02-08
Age : 59
Location : NE MS

Back to top Go down

Cox Inline Engine Silver Bullet Empty Re: Cox Inline Engine Silver Bullet

Post  Scotland421 Wed Jun 09, 2021 7:55 am

Aye, it is
Scotland421
Scotland421
Silver Member
Silver Member

Posts : 82
Join date : 2021-03-07

Back to top Go down

Cox Inline Engine Silver Bullet Empty Re: Cox Inline Engine Silver Bullet
