TD 09 Ducted Fan

Page 1 of 4 1, 2, 3, 4  Next

Go down

TD 09 Ducted Fan Empty TD 09 Ducted Fan

Post  aungmyatoo Fri Aug 30, 2019 10:53 am

Just got it from eBay
TD 09 Ducted Fan Img_3710
aungmyatoo
aungmyatoo
Gold Member
Gold Member

Posts : 328
Join date : 2012-06-07
Age : 55
Location : Singapore

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  aungmyatoo Fri Aug 30, 2019 10:55 am

Unboxing it
TD 09 Ducted Fan Img_3711
aungmyatoo
aungmyatoo
Gold Member
Gold Member

Posts : 328
Join date : 2012-06-07
Age : 55
Location : Singapore

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  aungmyatoo Fri Aug 30, 2019 10:56 am

Looks like lots of hardware
TD 09 Ducted Fan Img_3712
aungmyatoo
aungmyatoo
Gold Member
Gold Member

Posts : 328
Join date : 2012-06-07
Age : 55
Location : Singapore

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  aungmyatoo Fri Aug 30, 2019 10:59 am

Included TD throttle kid.
Looks like carburettor from back of Queen Bee to me.
TD 09 Ducted Fan Img_3713
aungmyatoo
aungmyatoo
Gold Member
Gold Member

Posts : 328
Join date : 2012-06-07
Age : 55
Location : Singapore

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  aungmyatoo Fri Aug 30, 2019 11:01 am

Cross section plan
TD 09 Ducted Fan Img_3714
aungmyatoo
aungmyatoo
Gold Member
Gold Member

Posts : 328
Join date : 2012-06-07
Age : 55
Location : Singapore

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  gkamysz Fri Aug 30, 2019 11:44 am

Hmm. I've never seen the throttle adapter set for that. These feel like such a nightmare to assemble correctly. I had a kit, but never put it together.
gkamysz
gkamysz
Gold Member
Gold Member

Posts : 414
Join date : 2018-02-22
Location : Chicagoland

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  1/2A Nut Fri Aug 30, 2019 12:38 pm

I saw that up for bid on ebay.
3.1" rotor / 78.74mm

Spotted this effort on the tube



Today you can get lovely all aluminum fans suitable for conversion to IC.

https://hobbyking.com/en_us/dr-mad-thrust-70mm-8-blade-all-alloy-edf-2200kv-inrunner-motor-1900watt-6s.html?countrycode=US&gclid=EAIaIQobChMI3sbr1pCr5AIVCtvACh2LMABsEAQYBCABEgL7IPD_BwE&gclsrc=aw.ds


Dr. Mad Thrust 70mm 8-Blade All Alloy EDF $75.00
TD 09 Ducted Fan 10799010
TD 09 Ducted Fan 10799011
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  Surfer_kris Fri Aug 30, 2019 1:51 pm

gkamysz wrote:Hmm. I've never seen the throttle adapter set for that. These feel like such a nightmare to assemble correctly. I had a kit, but never put it together.

It looks like a Queen bee carb with an extension hose to the venturi?
Surfer_kris
Surfer_kris
Diamond Member
Diamond Member

Posts : 1912
Join date : 2010-11-20
Location : Sweden

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  gkamysz Fri Aug 30, 2019 2:08 pm

Yes, that's what it looks like, just never saw it marketed by Kress. I may have a catalog somewhere. Just found a 1993 Kustom Kraftsmachip catalog.
gkamysz
gkamysz
Gold Member
Gold Member

Posts : 414
Join date : 2018-02-22
Location : Chicagoland

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  1/2A Nut Fri Aug 30, 2019 5:01 pm

REeeealy that would be cool to see, if willing scan in the pages.

No doubt a good effort today could make a viable fan system for a jet.
The .05 car engines would be the way to go. 65mm shroud.
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  aungmyatoo Fri Aug 30, 2019 6:51 pm

instruction for throttle extension
TD 09 Ducted Fan Img_3715
aungmyatoo
aungmyatoo
Gold Member
Gold Member

Posts : 328
Join date : 2012-06-07
Age : 55
Location : Singapore

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  OVERLORD Sat Aug 31, 2019 2:10 am

Great!! I bought the same kit a few months ago. I literally have a box full of bits without the polystyrene filling and without the instructions. There are lots of little screws and some blades I don't know where they go. Could you scan the instructions and send them by mail? PM sent.

TD 09 Ducted Fan P8310211

TD 09 Ducted Fan P8310212

TD 09 Ducted Fan P8310210
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1807
Join date : 2013-03-19
Age : 58
Location : Normandy, France

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  aungmyatoo Sat Aug 31, 2019 2:54 am

OVERLORD wrote:Great!! I bought the same kit a few months ago. I literally have a box full of bits without the polystyrene filling and without the instructions. There are lots of little screws and some blades I don't know where they go. Could you scan the instructions and send them by mail? PM sent.

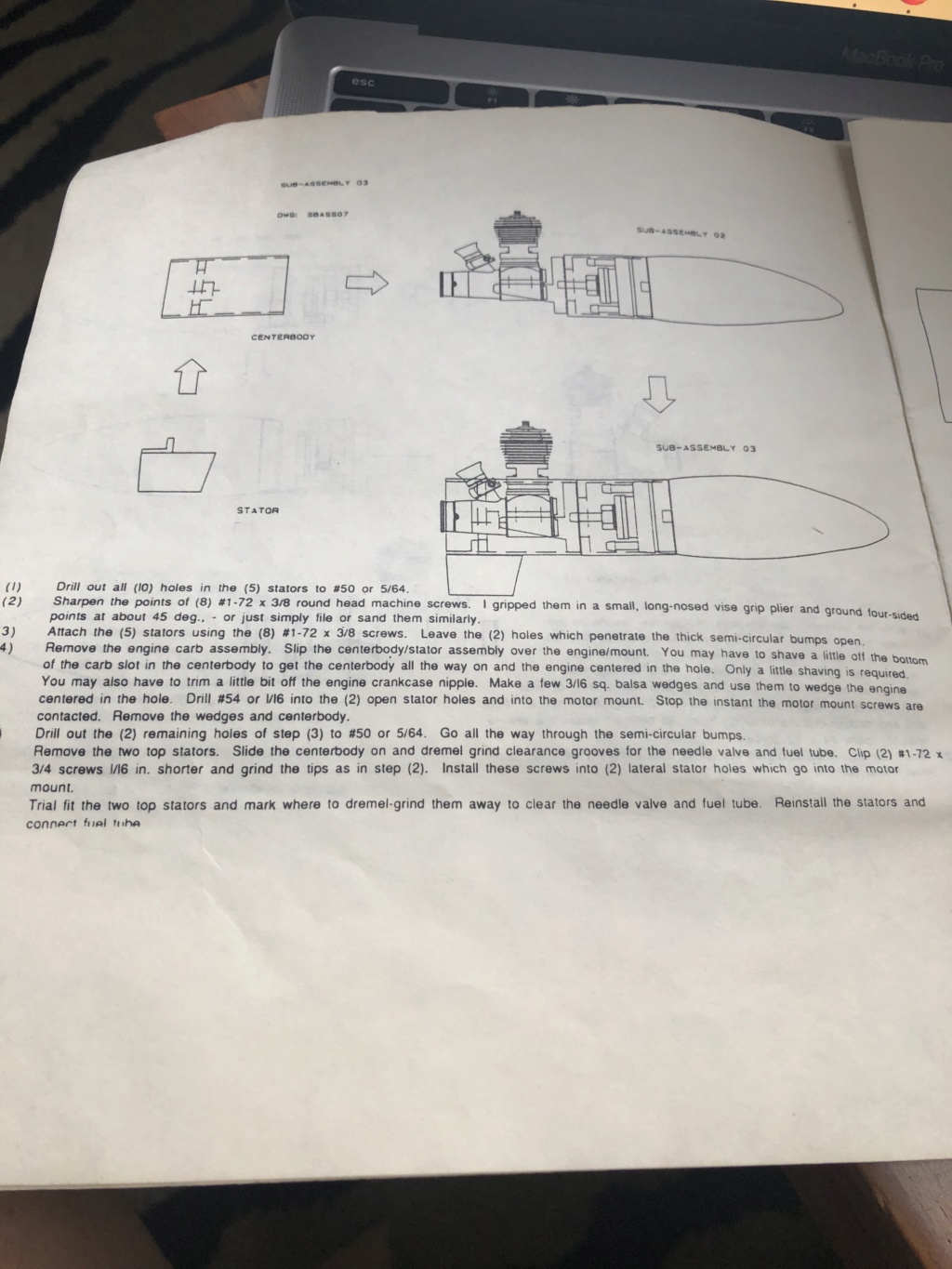

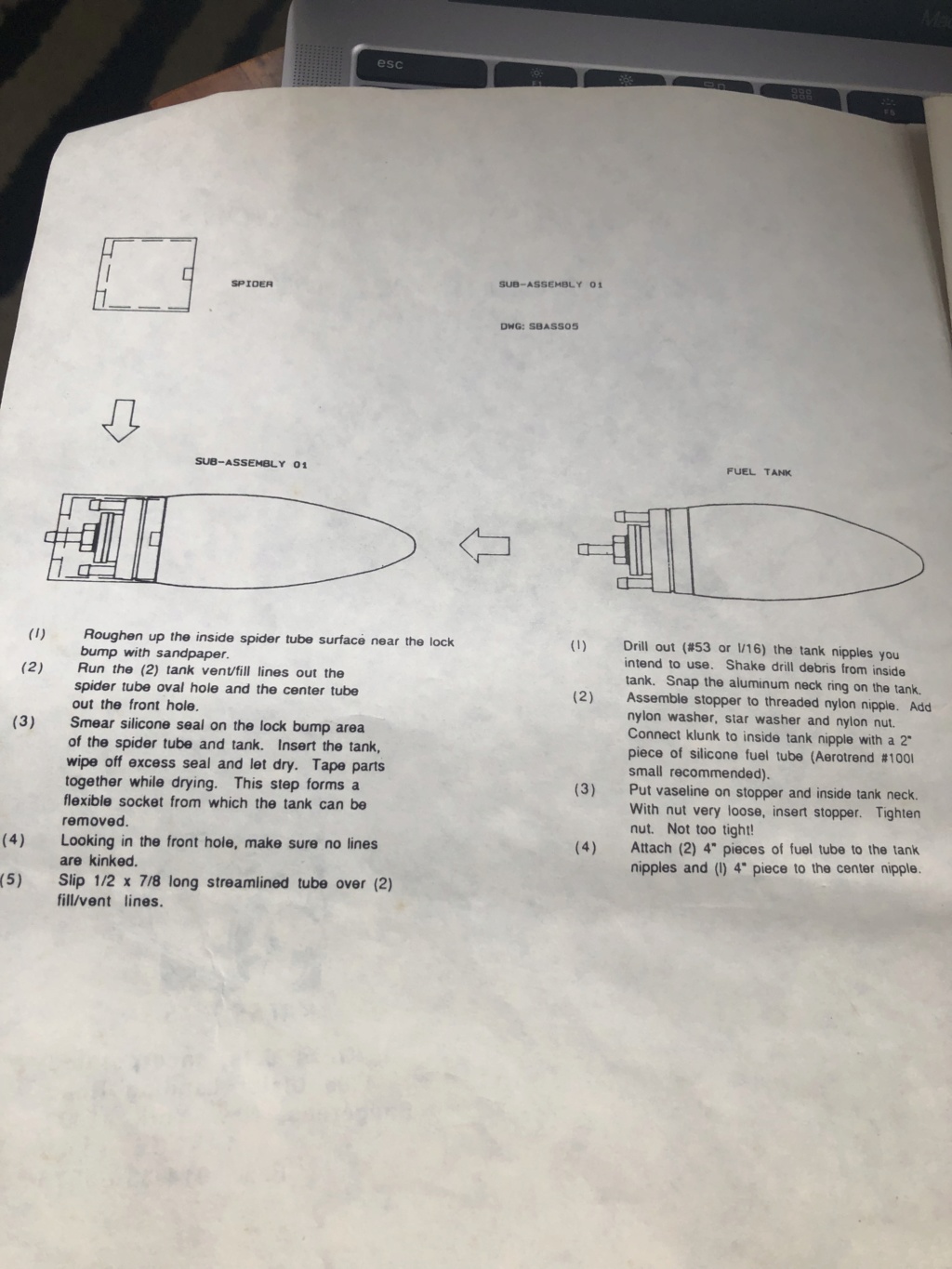

I have iPhone took photos and send to Mac. will upload all here.
TD 09 Ducted Fan Img_3717
TD 09 Ducted Fan Img_3716
TD 09 Ducted Fan Img_3718
aungmyatoo
aungmyatoo
Gold Member
Gold Member

Posts : 328
Join date : 2012-06-07
Age : 55
Location : Singapore

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  aungmyatoo Sat Aug 31, 2019 2:58 am

TD 09 Ducted Fan Img_3720
TD 09 Ducted Fan Img_3721
TD 09 Ducted Fan Img_3719
aungmyatoo
aungmyatoo
Gold Member
Gold Member

Posts : 328
Join date : 2012-06-07
Age : 55
Location : Singapore

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  aungmyatoo Sat Aug 31, 2019 3:10 am

TD 09 Ducted Fan Img_3727
TD 09 Ducted Fan Img_3728
TD 09 Ducted Fan Img_3729
aungmyatoo
aungmyatoo
Gold Member
Gold Member

Posts : 328
Join date : 2012-06-07
Age : 55
Location : Singapore

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  aungmyatoo Sat Aug 31, 2019 3:11 am

TD 09 Ducted Fan Img_3731
TD 09 Ducted Fan Img_3730
TD 09 Ducted Fan Img_3732
aungmyatoo
aungmyatoo
Gold Member
Gold Member

Posts : 328
Join date : 2012-06-07
Age : 55
Location : Singapore

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  aungmyatoo Sat Aug 31, 2019 3:13 am

TD 09 Ducted Fan Img_3733
aungmyatoo
aungmyatoo
Gold Member
Gold Member

Posts : 328
Join date : 2012-06-07
Age : 55
Location : Singapore

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  aungmyatoo Sat Aug 31, 2019 4:03 am

Just realise that my kit missing engine mount.
can tell me what are the dimensions of the mount?
aungmyatoo
aungmyatoo
Gold Member
Gold Member

Posts : 328
Join date : 2012-06-07
Age : 55
Location : Singapore

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  1/2A Nut Sat Aug 31, 2019 4:37 am

https://www.ebay.com/itm/MECOA-Nylon-engine-motor-mount-size-09-Round-back-Fits-Cox-MM-09-R/272506224573?hash=item3f72a2ffbd:g:iEQAAOSw-0xYRgLG

MECOA Nylon engine motor mount size .09 Round back Fits Cox #MM-09-R

TD 09 Ducted Fan S-l16025
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  aungmyatoo Sat Aug 31, 2019 5:15 am

Thanks, just ordered it.
aungmyatoo
aungmyatoo
Gold Member
Gold Member

Posts : 328
Join date : 2012-06-07
Age : 55
Location : Singapore

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  1/2A Nut Sat Aug 31, 2019 5:31 am

Most welcome look forward to seeing the project completed.
If able post a video of the engine running and plane project.

Thank you,

Brad
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  roddie Sat Aug 31, 2019 10:30 am

1/2A Nut wrote:REeeealy that would be cool to see, if willing scan in the pages.

Hey Brad, In reference to your interest in the Kustom Kraftsmanship catalog; I uploaded photos of my 1993 catalog a few years ago, in the below thread-link. The photos are a bit "light".. be they are legible.. and there's some very cool reading and tuning tips! I've been meaning to scan the pages for proper contrast.

https://www.coxengineforum.com/t6631-kustom-kraftsmanship-memories?highlight=Kustom+Kraftsmanship
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8801
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  1/2A Nut Sat Aug 31, 2019 10:52 am

Thank you Roddie, I have saved every page.
Yes hard to see the scans came out very light.

I tried inverting the colors in Windows Paint to see if the words would
be more easy to see. Not sure really down to eye preference. This site
does not allow anyone to double click and zoom in on the pictures or
it would be possible to read the writing. Everything has to be downloaded
and viewed on the home computer.
TD 09 Ducted Fan Kk_1-210
Small Cox Logo Old Bugger
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  OVERLORD Sat Aug 31, 2019 2:14 pm

aungmyatoo wrote:Just realise that my kit missing engine mount.
can tell me what are the dimensions of the mount?

Thanks for posting the pages of the manual. I read you ordered an enine mount but below the measurements of the one that came with the kit:

outside diameter: 35,2 mm
Inside diameter: 20 mm
space between bearers: 24,8 mm
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1807
Join date : 2013-03-19
Age : 58
Location : Normandy, France

Back to top Go down

TD 09 Ducted Fan Empty Re: TD 09 Ducted Fan

Post  aungmyatoo Sat Aug 31, 2019 7:43 pm

This kit need really DIY. It even ask to sharpen the tip of some screws.
aungmyatoo
aungmyatoo
Gold Member
Gold Member

Posts : 328
Join date : 2012-06-07
Age : 55
Location : Singapore

Back to top Go down
