16D motor for a Cox Chaparral 2E

Go down

16D motor for a Cox Chaparral 2E Empty 16D motor for a Cox Chaparral 2E

Post  blacksheep-1 Fri May 10, 2019 4:11 pm

Cox Engineering sent me here to ask, I realize it's a gas engine forum, but they insisted that you guys might be able to help me.
I am looking for a Cox 16D motor, these were somewhat unique in that they had a larger endbell bushing to accommodate a fulcrum arrangement that operated the "flipper" wing just like the real car.
I have been collecting parts for this build for 20 years from yard sales and whatever, so the history of the motor (other than it's a Cox) is a mystery, the motor runs, but heats up and I would shut it down to keep from frying it. The correct motor is on the left, the one on the right is a 36D..of which, there are multitudes. I have even tried to find someone to rebuild the motor but no luck so far.
Any leads or clues would be sincerely appreciated..sorry for the interruption

.16D motor for a Cox Chaparral 2E II4JaBml
blacksheep-1
blacksheep-1
Beginner Poster
Beginner Poster

Posts : 8
Join date : 2019-05-10

Back to top Go down

16D motor for a Cox Chaparral 2E Empty Re: 16D motor for a Cox Chaparral 2E

Post  Cribbs74 Fri May 10, 2019 10:54 pm

So,

I see several 16D motors on Ebay at the moment. I am not sure if they contain the special piece for the spoiler though.

Chapparel 2-E I assume is the only model that uses this motor?
Cribbs74
Cribbs74
Moderator

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 11907
Join date : 2011-10-24
Age : 50
Location : Tuttle, OK

Back to top Go down

16D motor for a Cox Chaparral 2E Empty Re: 16D motor for a Cox Chaparral 2E

Post  getback Sat May 11, 2019 8:16 am

I don't know much about these motors but these have the mounting tits like the one you show .. https://www.ebay.com/itm/Vintage-Lot-of-7-Cox-and-other-brands-of-Slot-Car-Motors-1-24-Scale-1-32/223499009874?hash=item3409943f52:g:4EwAAOSwOsdcvlKM And there is anouther one that seems the guy may bee a Machiniest ( you could contact the seller ) about a rebuild ?? https://www.ebay.com/itm/1-24-Cox-slot-car-1-large-can-motor-and-1-Cox-large-can-Nascar-motor/333188411290?hash=item4d9393af9a:g:FNQAAOSwYpVcXc7I
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10437
Join date : 2013-01-18
Age : 67
Location : julian , NC

Back to top Go down

16D motor for a Cox Chaparral 2E Empty Re: 16D motor for a Cox Chaparral 2E

Post  crankbndr Sat May 11, 2019 9:21 am

I was an early teen at the hight of slot car hobby, there was several 1/24 scale tracks close by. We really got into it, built our own chassis out of brass tube and my 12 yr old brother would rewind armatures for more Rs so can't be hard to rewind a motor. We knew the shop owners so he would pull out a box of motors and power em up, you could tell the faster ones by sound and we got those.
Saturday night were races and we cleaned up consistently. I found a 1/24 track 100 miles away about 10 years ago and made the drive with my Son a lot, getting back into tuning and go fast again. They had wing body cars that were so fast you couldn't see em, some burned on track from over tuning.
I was having a blast until the track shut down, Bummer!! If I was rich I would build my own track. Great hobby, miss it!!


I found a vid of the wing cars, 2 second laps!!





another



Last edited by crankbndr on Sat May 11, 2019 11:00 am; edited 3 times in total
crankbndr
crankbndr
Top Poster
Top Poster

Posts : 3109
Join date : 2011-12-10
Location : Homestead FL

Back to top Go down

16D motor for a Cox Chaparral 2E Empty Re: 16D motor for a Cox Chaparral 2E

Post  blacksheep-1 Sat May 11, 2019 9:43 am

Cribbs74 wrote:So,

I see several 16D motors on Ebay at the moment. I am not sure if they contain the special piece for the spoiler though.

Chapparel 2-E I assume is the only model that uses this motor?

Yes, I have researched D bay considerably, those motors, unfortunately do not have the large brass bushing that is needed for the wing attachment.
blacksheep-1
blacksheep-1
Beginner Poster
Beginner Poster

Posts : 8
Join date : 2019-05-10

Back to top Go down

16D motor for a Cox Chaparral 2E Empty Re: 16D motor for a Cox Chaparral 2E

Post  roddie Sat May 11, 2019 11:11 am

Hi blacksheep-1, There is a slot-car facility in Ashland, MA called Modelville Hobby. Richard Payne is the owner. The shop should be open today from 1-6 pm EST. Hours are Tue.-Fri. 4PM-9PM and Sat./Sun. 1PM-6PM.

http://modelvillehobby.com/?fbclid=IwAR0Fmf6mY7uAr0ctSVhEm8pgVupEG2R9HqPiashjUxgcrpXcvYOqyn5EJ3U

There is also an "active" Facebook page;

https://www.facebook.com/Modelville-Hobby-407640159403168/

Richard may be able to help you. I have a Cox "Cucaracha" that I took some photos of. Not sure if the Cucaracha used the 16D motor though. My Grandfather gave me this car a long time ago. I have run it at Modelville Hobby. Richard hooked me up with a new set of rear hubs/tires.. as the original Cox tires had become brittle with age. I have the originals with knock-off hubs saved with my slot-car stuff.

16D motor for a Cox Chaparral 2E 20190522
16D motor for a Cox Chaparral 2E 20190523
16D motor for a Cox Chaparral 2E 20190524
16D motor for a Cox Chaparral 2E 20190525
16D motor for a Cox Chaparral 2E 20190526

Best of luck!! Small Cox Logo
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8801
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

16D motor for a Cox Chaparral 2E Empty Re: 16D motor for a Cox Chaparral 2E

Post  Cribbs74 Sat May 11, 2019 2:30 pm

blacksheep-1 wrote:
Cribbs74 wrote:So,

I see several 16D motors on Ebay at the moment. I am not sure if they contain the special piece for the spoiler though.

Chapparel 2-E I assume is the only model that uses this motor?

Yes, I have researched D bay considerably, those motors, unfortunately do not have the large brass bushing that is needed for the wing attachment.

Could you not just  dissassemble the current motor and replace the armature and brushes with parts from another 16D?

Those can motors pop apart pretty easily. Plus you might just find it only needs a good cleaning and lube to reduce the friction on the armature that is causing the overheating. All it takes is a bit of hair or carpet fibers to bind an armature.
Cribbs74
Cribbs74
Moderator

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 11907
Join date : 2011-10-24
Age : 50
Location : Tuttle, OK

Back to top Go down

16D motor for a Cox Chaparral 2E Empty Re: 16D motor for a Cox Chaparral 2E

Post  NEW222 Sat May 11, 2019 3:37 pm

crankbndr wrote:I was an early teen at the hight of slot car hobby, there was several 1/24 scale tracks close by. We really got into it, built our own chassis out of brass tube and my 12 yr old brother would rewind armatures for more Rs so can't be hard to rewind a motor. We knew the shop owners so he would pull out a box of motors and power em up, you could tell the faster ones by sound and we got those.
Saturday night were races and we cleaned up consistently. I found a 1/24 track 100 miles away about 10 years ago and made the drive with my Son a lot, getting back into tuning and go fast again. They had wing body cars that were so fast you couldn't see em, some burned on track from over tuning.
I was having a blast until the track shut down, Bummer!! If I was rich I would build my own track. Great hobby, miss it!!


I found a vid of the wing cars, 2 second laps!!





another


Wow is about all I can come up with.
NEW222
NEW222
Top Poster
Top Poster

Posts : 3896
Join date : 2011-08-13
Age : 46
Location : oakbank, mb

Back to top Go down

16D motor for a Cox Chaparral 2E Empty Re: 16D motor for a Cox Chaparral 2E

Post  crankbndr Sat May 11, 2019 7:09 pm

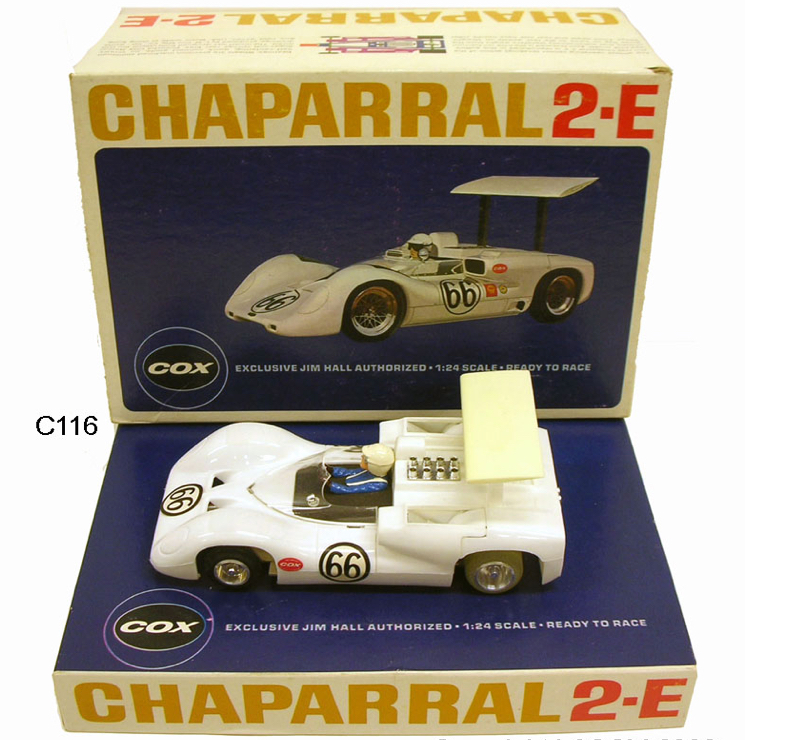

Is this the model? I was a little surprised at the prices these fetch. Make a Strato Bug look cheap! In some of the photos you can see the cam that moves the wing.

http://slotblog.net/topic/47313-cox-chapparral-value/


16D motor for a Cox Chaparral 2E Slot210


crankbndr
crankbndr
Top Poster
Top Poster

Posts : 3109
Join date : 2011-12-10
Location : Homestead FL

Back to top Go down

16D motor for a Cox Chaparral 2E Empty Re: 16D motor for a Cox Chaparral 2E

Post  getback Sun May 12, 2019 8:27 am

WOW on the Speed and WOW on the Price !! They do fetch some big money ! Does the speed on the motor set the fin force ? Eyebrows
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10437
Join date : 2013-01-18
Age : 67
Location : julian , NC

Back to top Go down

16D motor for a Cox Chaparral 2E Empty Re: 16D motor for a Cox Chaparral 2E

Post  blacksheep-1 Thu May 16, 2019 7:10 pm

Roddie, thanks for the suggestion, I will be in touch with him

Cribbs, it doesn't quite work that way, I've tried that route and the armature is apparently different from most 16D in the length

Crnkbndr, yes, that's the one, although mine is the "cheap" version, that one probably has the magnesium chassis, mine has the stamped LaCucaracha style motor , similar to the one Roddie posted, it's basically the same chassis with an arm coming from it to activate the wing, it also "rocks" in the chassis so it can move the wing, hence all the issues trying to find the right pieces.
You've given me some ideas, so let me pursue those for now. I was out of town for a few days, so it took me awhile to respond, but thanks for the imput.

blacksheep-1
blacksheep-1
Beginner Poster
Beginner Poster

Posts : 8
Join date : 2019-05-10

Back to top Go down

16D motor for a Cox Chaparral 2E Empty Re: 16D motor for a Cox Chaparral 2E

Post  roddie Fri May 17, 2019 4:40 pm

blacksheep-1 wrote:Roddie, thanks for the suggestion, I will be in touch with him

My pleasure. Best of luck to you. Please let us know if you're able to restore the Chaparral's operation. I for one would love to see the car.. running or not.
roddie
roddie
Top Poster
Top Poster

2024 Supporter

Posts : 8801
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

16D motor for a Cox Chaparral 2E Empty Re: 16D motor for a Cox Chaparral 2E

Post  blacksheep-1 Tue May 21, 2019 2:56 pm

How this menagerie works, is thus.
The Cox 16D motor has a large endbell bushing, the plastic bellcrank fits on that bushing. (motor has no pinion for demo)

16D motor for a Cox Chaparral 2E HmBZBUwl

This goes into the chassis and the unobtainable wire link runs off the bell crank, the bellcrank indexes on a piece of plastic that is attached to the chassis to serve as up and down stops for the wing. (again, the motor is missing the pinion gear)

16D motor for a Cox Chaparral 2E Ra0VByTl

The unobtainable steel rod runs through the body and attaches to this small hole under the wing, when you gas it, the wing straightens out, when you le toff, the wing goes into an angle.

16D motor for a Cox Chaparral 2E ZBSAxOPl
blacksheep-1
blacksheep-1
Beginner Poster
Beginner Poster

Posts : 8
Join date : 2019-05-10

Back to top Go down

16D motor for a Cox Chaparral 2E Empty Re: 16D motor for a Cox Chaparral 2E

Post  Cribbs74 Tue May 21, 2019 8:47 pm

Pretty neat little setup, you would think it would work the exact opposite in that the wing would tilt down when throttle is applied to provide more downforce at speed.

That rod looks relatively easy to replicate. Not that you would ever need to, but it may help someone else down the line if you made a copy of it.

How is the search coming along?

Ron
Cribbs74
Cribbs74
Moderator

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 11907
Join date : 2011-10-24
Age : 50
Location : Tuttle, OK

Back to top Go down

16D motor for a Cox Chaparral 2E Empty Re: 16D motor for a Cox Chaparral 2E

Post  getback Wed May 22, 2019 7:49 am

I was thinking the same thing Ron , thats is pretty neat for a slot car to have that tecnologie. Thanks for the view and explanation of the wing to motor Shocked
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10437
Join date : 2013-01-18
Age : 67
Location : julian , NC

Back to top Go down

16D motor for a Cox Chaparral 2E Empty Re: 16D motor for a Cox Chaparral 2E

Post  fredvon4 Wed May 22, 2019 8:50 am

WOT down straight a way no wing no drag....into the corner max wing down force
fredvon4
fredvon4
Top Poster
Top Poster

2022 Supporter

Posts : 4012
Join date : 2011-08-26
Age : 69
Location : Lampasas Texas

Back to top Go down

16D motor for a Cox Chaparral 2E Empty Re: 16D motor for a Cox Chaparral 2E
