Ring Master Gold KIt

Fred, It looks great but I would have shaped the fuse before adding the CF Veil? Or are you leaving it square?

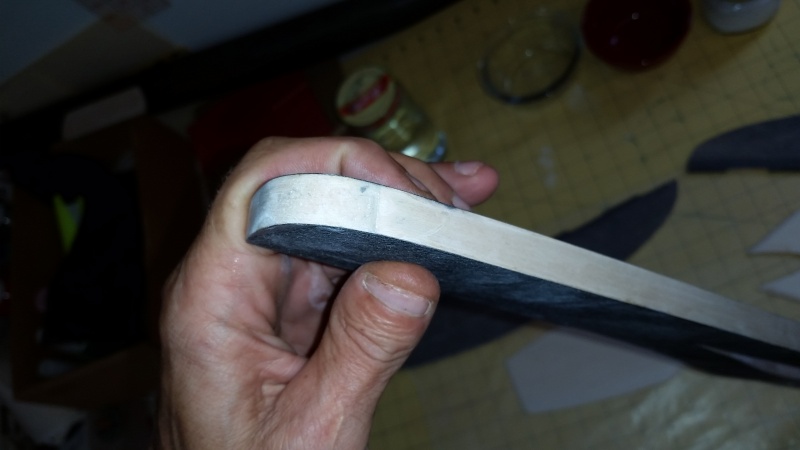

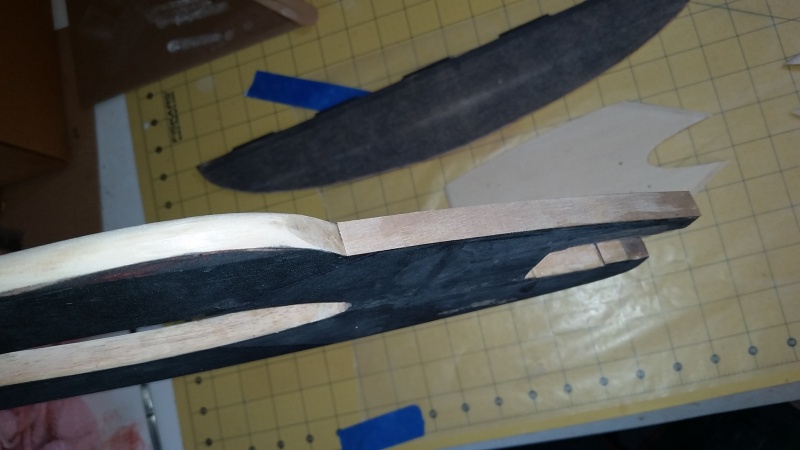

I did round over the Top from Front of canopy to before the rudder. But yes, the front nose and entire bottom is full width square with slight radius on all corners

fredvon4 wrote:I did round over the Top from Front of canopy to before the rudder. But yes, the front nose and entire bottom is full width square with slight radius on all corners

Aaahhh, ok. That's how my Brodak ARF Ringmaster is. I prefer and oval top to bottom shape. At some point I want to try the carbon veil. I ordered some CF tubes for pushrods from CST a few days ago, and looked at the price of the veil and it scared me away....

Bill I use ACP for all the carbon stuff and a yard of veil is really reasonable considering how far it goes

Jut got a new order delivered this week the .2oz stuff a yard was $14.50
the .3 was $15.00
and the .5 was 17.50
a 48 inch stick of the .156 OD rod I use for push rods was $4.15

I will not need any more from them for several years

Keep up pictures of progress Fred. This is on my watch list.

A brief word about how I learned to cut rib slots and other proper sized slots in light wood



A stack of band saw blades will work but I use sections of my small format band saw (broken) blades after I straighten several 8 inch sections

in my case 2 together so teeth fit together and heat shrink tubing either end gives me a perfect 1/16th slot
and three done up give me 3/32nds, the 4 section one is 1/8th wide slot cutter ( not pictured)

Pat provides his version of adjustable lead out.... 4 sections of ply with holes, a front and rear slot the wire can slide left or right and two proper sized thimbles
TO adjust you grab the thimble with needle nose, pull out and re-insert in a different hole

sorry did not take a assembled photo of his method...but in the final assy photo you should see and get it

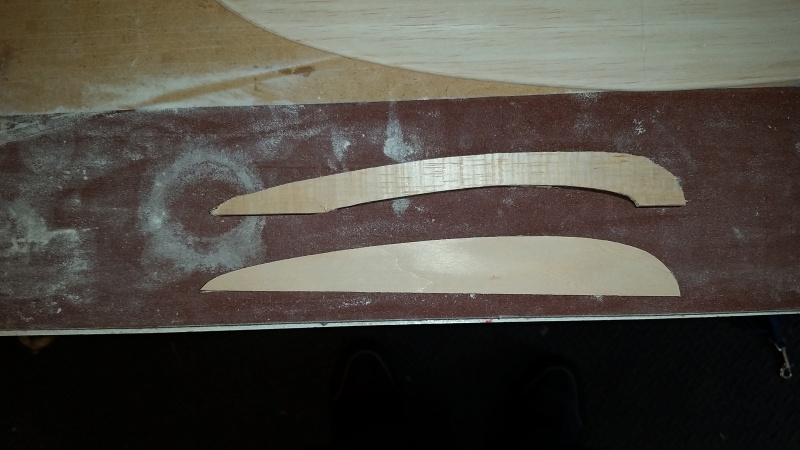

The kit has two wing tips, laser cut from light 3/8th balsa

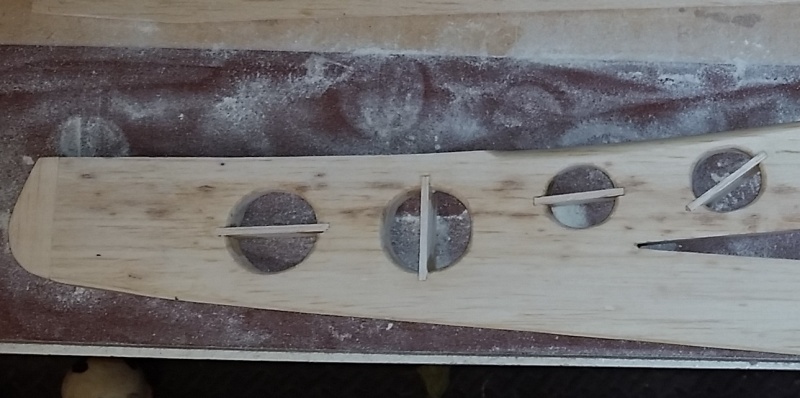

I need to adapt the inner tip for the adjustable lead out (ALO) stack

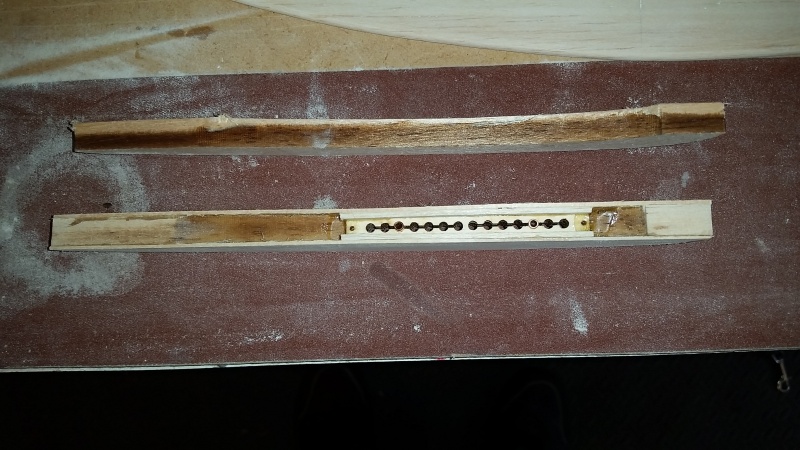

First I copied the shape on 1/32 ply ( could have / should have  used 1/64th)


I made a top and bottom then glued on one, located the area for the ALO, and cut it out of the balsa resulting with the original wing tip front and rear with ALO gap bridged by the ply
The ALO is 1/8th thinner than the original 3/8th wing tip piece, so need two 1/16th spacers to center the ALO in the sandwich

When all glued up and sanded it is 7/16th vs the out tip at 3/8th...I can live with the slight dissimilarity ...I did not have confidence I could thin the original 3/8th balsa properly

I use Sig and Randolpf dope

The Sig stuff is usually bought in 1/2 pint colors, Pints and quarts of clear, but price per gallon is way up there...fortunately the color goes a long way on the smallish planes I build

Planning a lot of Nostalgia combat wings and some of these old skool stunt planes I am building I desired to re-learn silk and needed a goodly amount of dope. Trip to Dalas to visit daughter and stopped at an aircraft supplier for the Randolph stuff

Still pricey at $48 per gallon including the thinner also at $48.....$250 trip (2 dopes 3 thinner) but enough for several years

The problem with Gallons is how to use it and not make a mess or screw up the lid seal

I mail ordered a bunch of these:



But I want to mix in 1/2Pint Mason jars and the pour spouts and weight of the gallon make it hard to do

In another thread I mentioned that WalMart BBQ section sells .88cent 2oz meat marinade injectors. I did a test to see if the thinner would melt or seize up one of them...15 min later had a plan

The thinner sucks into the needle easily (watery) but the dope is too thick so I hacked off the nose and made a bigger suck it in hole


crummy camera work but I did mark the lids with the 50/50 mix of each different dope



I also now use Zink Sterate as the filler mixed in the thinner then add some dope
Randy Smith Aero Hobbies sells a tub of very finely ground ZS for about $18 enough for years

Damn that is the most legal DOPE I have ever seen ,,, are you not worried about drying out ? I know you talked a bout cleaning the seals on the cans . But to me that would take aloooong time too use in gals. ! Eric

Erik, yes 2 gallons is a lot if you consider most of it gets thinned 50/50 or in some cases (for spraying) more thinner. I rarely use straight 100% dope.

I had a jar of dope in my stuff from 1973 when I built a lot of balsa combat planes. In 2012 when I retired and set up my hobby shop I found it and the dope was slightly darkened but still thinned and worked well.

I do plan to decant both dopes from the gallon paint cans into some of the 1/2 gallon and quart cans I just bought (pictured in the fuel blending thread)

I would suspect , if just a little used from the gallon paint cans, the increasing volume of air would promote early degradation,

From my Combat days I have long been fond of tube and pin type hinges.
That and I don't do cloth ones very well, and sewn look good to me DONE right but are tedious on bigger tails
I have been sort of successful with Klett type but always seem to get one slot slightly too high or angled causing a bind and rework

A lot of stunt guys use barrel (Klett /DuBro) hinges but take out the pins and use a long thin piano wire so they can remove the elevator.

I tried one time to do the hinge from MonoKote per internet directions and it was way stiff! I prefer elevator to fall under it's own weight and not be sloppy at the same time...Covering hing method seemed to return to neutral if deflected by hand

The hinge line on this bird is 17 inches long so I found a length of Carbon tube left over that would work and cut segment 1.5" long after finding a section of piano wire that was good but loose fit

Last note ...the balsa is out of 3/16th well selected wood, flat, light, good grain and resists flex or twist in each plane. The selected tube to be centered needed a shim under (on my building board using a thin strip of 1/164th cellophane taped down). I decide to use WalMart E-6000 tube glue... tacky, sets fast, and slightly flexible once dry...beware this stuff does NOT sand at all

I just needed to get each segment stuck to it's aligned position, no cross bleed into the wire (used for alignment) and the final attachment strength by the doped on CF veil.  I tried this previously using CA to stick and too often I dropped too much and locked up the pin barrel even with medium thick CA

My last escapade with silk'n dope after many years absence was a disaster. Still haven't got to grips with what went wrong but many models that I will be constructing are vintage and rely on this for strength. I warped  and twisted everything beyond repair!

It is difficult for me to follow a lot of the posts on finishing because the products mentioned are not available in the UK and have no equivalent. Butyrate dope is a rarity - all the dopes freely available here are Cellulose/Nitrate (but they smell nice!).

Even the terminology is different - taughtening = shrinking.

I notice though that you have both shrinking and non-shrinking dope. Do you blend them or use them separately for specific purposes?

When I watch the "Windy" videos, I am left clueless. He always promotes Brodak dope but from listening to many of his videos - I gather that although that is a "secret" formula that he helped develop - it is a blend of shrinking and non-shrinking dope. I have looked closely at the cans of the stuff he employs and do not see "taughtening" or "non-taughtening" anywhere.

I see Nitrate, Butyrate, Retarder, Rejuvinator ......... on the Brodak site but no mention of shrinking non-shrinking.

We also don't have retarder here!

I suspect since areo modeling all over the globe has evolved at a similar pace, that in the UK thee must be ways to get similar finishing components

Some things I learned...in the early years NITRATE dope was mostly to water proof* balsa and provide and easy to melt** substrate for the next steps of adding silk, paper ( tissue), or paper/silk composites (silk span). With rubber power, Nitrate was good enough-- but for fuel engine power, Butyrate dopes were needed. Early they learned that Nitrate dope ALWAYS needed to be the first and never on top of any other coating or paint

Retarders, and plasticizers came later as the desire to work in high humidity (dope blushing) or have a pristine finished model last for decades (additives to prevent cracking of the dope because it is always shrinking)

Ian I know you know this but I am writing for all the neophytes lurking also

* water proof because Balsa changes shape and size dramatically if wet and we are applying watered wet covering with silk or paper/silk blends because they shrink tight once dry

** melt... when the Nitrate is dry we need a way to glue down the paper, silk or silk/paper covering. Thinned Nitrate OR Butyrate dope will flow through the wet covering and the thinner will melt the dope in the balsa and cross-link with the new dope holding the covering down

I personally learned that the Nitrate can be replaced by Butyrate for every layer and no real noticeable adhesion issues

Ian...we still have Dope here in the USA because there are thousands of old time cloth wing full sized airplanes in existence that must periodically replace the covering...I have to believe that this is the same in the UK...I would find a airplane repair shop and go ask the guys what are the current products...I seriously think the exact same dopes, thinners, and additives exist in your world

Perhaps not at the hobby shop variety and quantity

Sig MFG and Brodak both contract with the Full sized suppliers to produce the smaller Qty products we use in modeling

Final thought... I learn a lot from others and my own mistakes...Silk and dope is as much an art as a specific formula.....lots of variables.... reducing the variables produces good/better/acceptable results

I never mix brands
I never use off brand thinners
I try to control humidity
I spend a lot of time sanding, cleaning, between steps
I prohibit ANY silicone product near my hobby space
I clean and dry my hands a lot or use gloves...both cloth and rubber versions
I use automotive paint finishing wax impregnated "tack" cloths, air pressure, and alcohol rag to remove all dust prior to any spray painting

BUT with all the experience and knowledge I still screw up a finish some way and I am never in search of a Concurs 20 point perfect model...just dry, the right color, fuel proof, and shiny


Edited in:
Silicone with ruin ANY painting
I never run a glow engine in my work space...
I never spary any oil based product in my work space
I keep all engines, Balsa stock, silk, tissue, and other covering materials in a container, bag, or original packaging so my heavy smoking will not contaminate... tar residue will discolor and ruin a lot of stuff

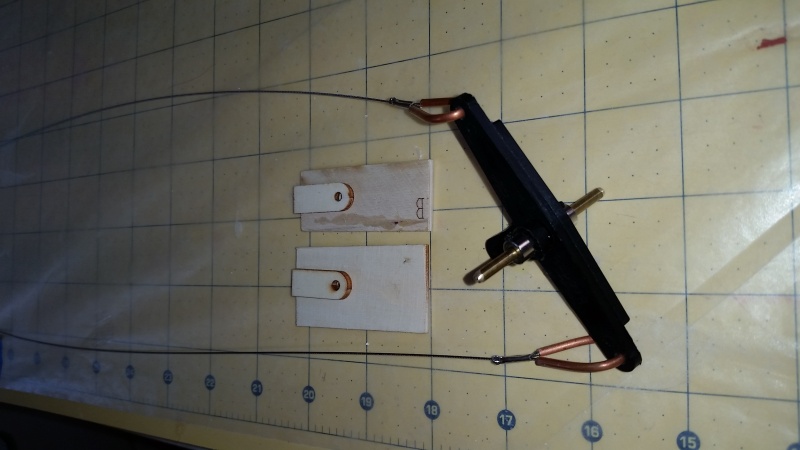

Pat provides a nice BC assy but it is music wire based and the platform is lite ply with two stacked ply pieces using the supplied single bolt

Long Music wire no bends with guide mid way will work just fine ...but I have the items for CF tube and no need for a guide/stand off

I much prefer a free floating suspended BC supported both top AND bottom...easy to fabricate

Note also this set up has the BC outboard and the push-rod lever inboard  (photo not the supplied BC just so you get the orientation)

In this configuration the elevator horn is under, so up line in front pushes the elevator up


As stated I prefer top and bottom support
To this end I used a piece of 1/8th wire (smaller then the ID of the supplied BC. I used 1/8th ID a brass sleeve to bush the BC ID so no loose rocking fit

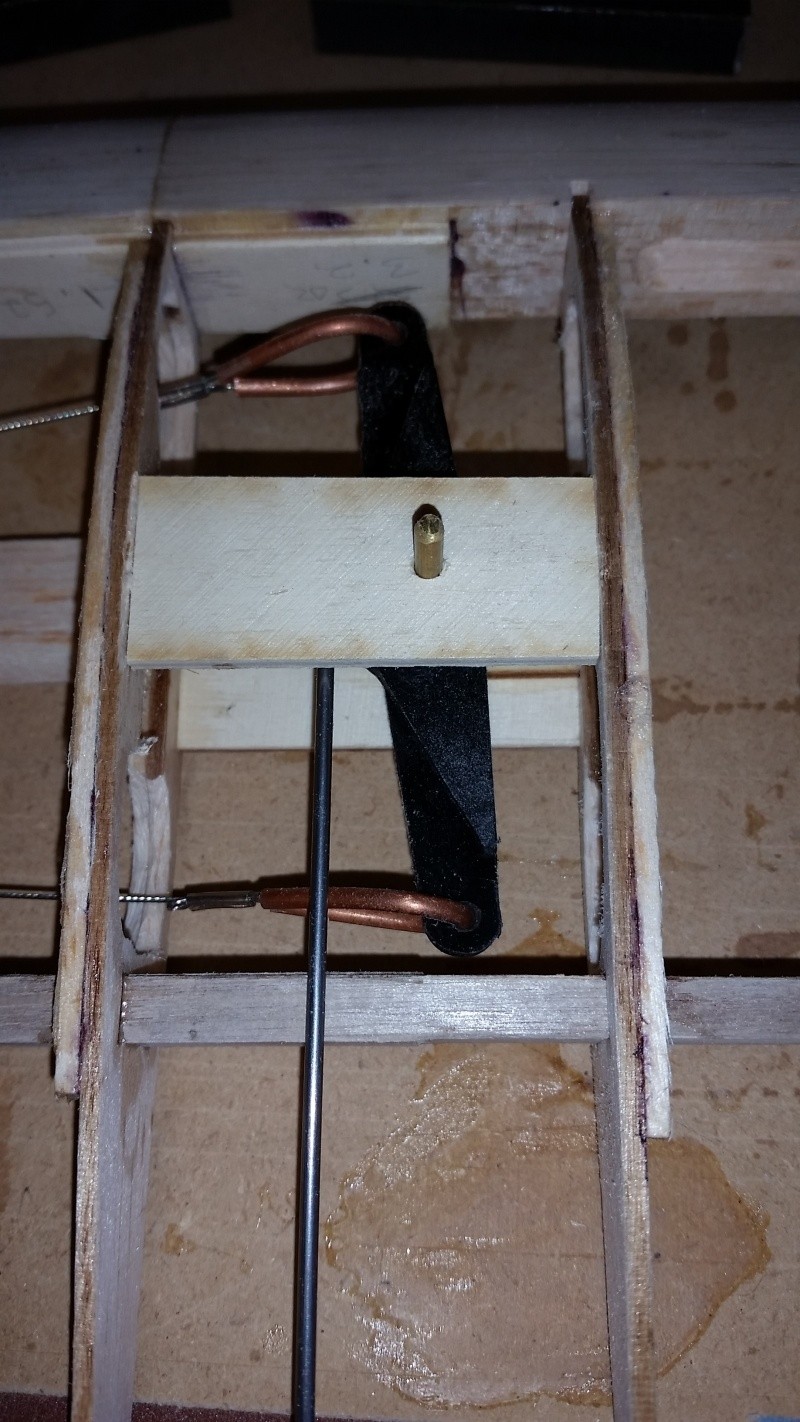

In this photo we see the BOTTOM plate is original and the two ply fillers and the piece with he "B" is the top plate I cut


I used wheel collars and Lock tight to center the BC, bearing,  and 1/8th rod....later to be cut to length
Not this BC has offset top and bottom arms so the LO wires and Push rod do not interfere with each other...hard to see in my poor photos





after centering top to bottom and fore/aft glued in--- and the pin/post 1/8th cut off to be under the wing sheeting--- after a quick shot of Medium CA and accelerator...not really needed as the supports are down to the loktited wheel collars and the assy can't really slide up or down...very free moving with no hitches or binds any where in the full travel

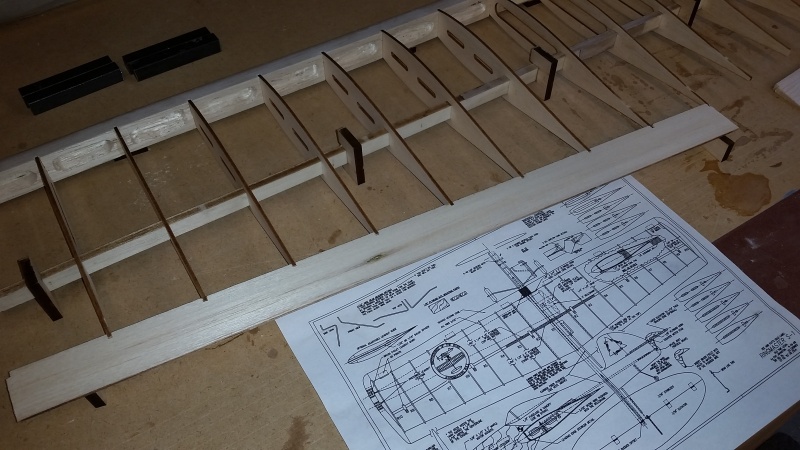

In the kit Pat supplies a few laser cut jigs to help level and build the wing flat assuming a flat building board





I sanded down the glue drips and re-leveled the 3/4" MDF board, then used a straight edge to align the LE jigs and tacked glued them to the flat board

This is first use of a new to me glue..SuperPhatic Deluxe products UK sold here by Horizon Hobby for $7.99 a bottle. Basically thinned down Elmer's type wood glue that wicks in, sets fast, and very good sanding quality...I like it but no instant set or kicker as with CA



Another glue I learned to love and HATE...the newer expensive Ambroid from a Canadian supplier ( I like Sig-ment better)
Hate the runny stuff
Hate the cost
Love the smell
Ken Cook taught me a trick this stuff is perfect for...pre glue the center ribs, place center sheeting in place, take off and let dry some...the shrinkage pre forms the sheet, re-glue and set in place, pin or weight and your done


Pat also recommends hogging out the LE shallow in the center and deeper as you move outboard to reduce weight but not compromise the structure

The two piece wing need center support to not fold in high G maneuvers

In this case the center spar has 1/64th box top and bottom making the balsa spar strong in the center but the LE and TE  joint need reinforcing....I use Sig light Glass Fiber cloth and dope in this area. I used to lay it on with Zpoxy finishing resin but it is a terrible mess and much harder to sand. No doubt the Zpoxy is stronger but I don't think my dope and ZS method is too weak and much easier for me to apply

My Bell crank to elevator horn is always done with 6 components these days:
BC to CF tube is a short section of 3/32 Music wire with Z bend at BC
CF Tube is from ACP and 0.156 OD
one Titanium 5/32 x 4-40 adapter in the CF tube elev control horn end
and one DuBro 4-40 metal locking clevis
Both outer portion ends of the CF tube get a sleeve of aluminum or brass tube to prevent fraying of the tube.
Looks better than on the combat ships where we usually just wrap with thread (any kind) and thick CA
All of this is J&B epoxy in place

I am assuming that the exit hole for the push rod is the top of the wing and this was sheeted first.

What is the material surrounding the push rod as it exits the hole?

Ian Reread

In this case the center spar has 1/64th box top and bottom making the balsa spar strong in the center but the LE and TE joint need reinforcing....I use Sig light Glass Fiber cloth and dope in this area. I used to lay it on with Zpoxy finishing resin but it is a terrible mess and much harder to sand. No doubt the Zpoxy is stronger but I don't think my dope and ZS method is too weak and much easier for me to apply

( Sig light Glass Fiber cloth and dope in this area ) That's looking really strong Fred , I like your 6 component push rod set up . EriC

I have and use two weights of the SigMfg Fiber Glass (FG) cloth

The SIGGF003 is .75 oz per Sq Yard
the SIGGF007 is .56 Oz per Sq Yard

in this case I used the .75 stuff and instead of epoxy resin, the proper fill and glue, I just used thinned dope initially then a few coats of Zink Sterate loaded thinned Dope to fill in the weave

The center section will also have overlapping 8MM Blue dyed Dharma Silk doped on and filled. Eventually the very center 3/4" to 1" will have epoxy and SuperFil fillets attaching the wing into the Fuselage saddle cut out.

I don't fly real hard Tight corners creating a lot of G force that might fold a wing, so I am confident that MY use of Dope for the FG and not Epoxy resin will be strong enough...if others fly real hard I do recommend the Zpoxy finishing resin or similar for attaching the FG to BARE sanded balsa

Later once wing is installed I will cut loose the area of FG that covers the push rod exit hole and install a Balsa shaped cover to keep fuel and oil out

Form looking at the pictures - the material in the exit hole looked to be a different colour and because I could see the edges it looked like it had been applied from the inside.

Didn't think it was the top covering waiting to be trimmed.

Actually the design has the BC push rod nearly a straight shot out the top of the wing to the underneath elevator horn ( thus not needing any bends in the push rod assy)

The slit I put in the Glass Fiber and will also put in the silk, does not create any noticeable drag on the control so I may not cut back /away much of the GF, if any, after I sand off the little bit of sloppy dope on the Push rod

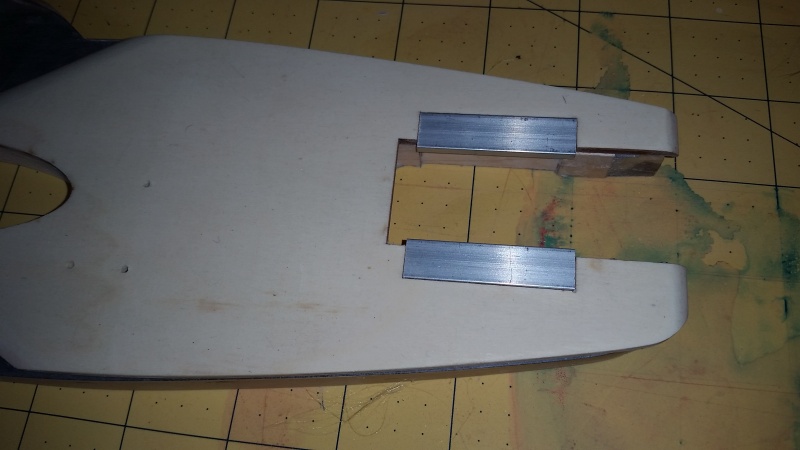

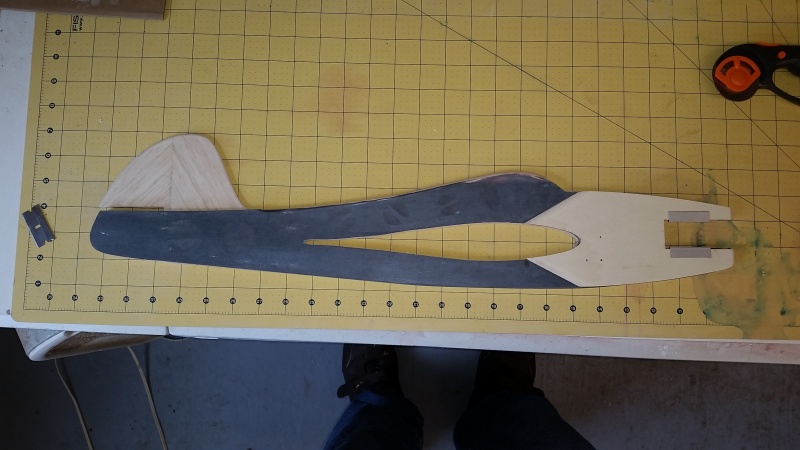

Still waiting on the engine to arrive before finishing the Fuselage front end drill and bearer mounting...then placement of the doubblers... some filler, sanding and smoothing, hard points for the Aluminum Landing gear and mock up... then off to get a shot or two of Napa sourced Dupli Color 540 primer and more sanding before color coats.... not decide yet on White dope or Rattle can white... the rattle can stuff is fairly fuel proof...the dope method needs more weight from a few light clear coat layers

Blue silk wings... thinking of tinting the dope with some blue for this wing
Red Dope ruder and tail
White Fuselage
Sliver Canopy
Perhaps one 3 or 4 inch stripe of black and white checkers on outboard wing... I have the monocoat checker trim sheet but not keen on how to get it on top of the silk and dope and not look funky
Certainly a BOTR and RM decal

As is apparent, I have not done a thing with this since June...many reasons

Weather is prime
Family vacation
Grand children now here
Helping my son build a very large shop in town at his place

Actually my wife and I have been flying my other RMs a bit in the early AM and she is starting to pester me about silking the wing for this plane

Progress soon...I hope...it the WX will just drop some below 103F

I didn't see this one before Fred. Looks like it's coming along nicely. Glad to see you used the inner hole on the bellcrank. You will thank yourself later for that. I am surprised though, that you intalled the rib ripper.

Ron
