Re: Cox PeeWee Micro Speeder
Plus one more on helping the young man …. Plus I like reading your stats and data…. Keep putting it up compadre ….
rdw777- Diamond Member
-
Posts : 1716
Join date : 2021-03-11
Location : West Texas
Re: Cox PeeWee Micro Speeder
This is just great.
Helping each other!!!
You are doing a grand job Mr Speed!
If I may help as well?
I am a very light builder and purposely so the planes fly nicer.
If you don't mind me saying, your fuse bottom seems to be 3mm thick.
On a tiny plane like that, 1.5mm is plenty.
Only trying to help.
Don't despair...it will not take long to make a new one.
Keep it light.
Also when you make a fuse bottom and top, the wood grain should fall at 90% to the fuse length.
The opposite to how you have it.
This is to give more strength.
When you squeeze the fuse or hold it too hard ready to launch it, you cannot crush it because of the wood grain direction!
Keep at it mate.
Woody.
Helping each other!!!
You are doing a grand job Mr Speed!
If I may help as well?
I am a very light builder and purposely so the planes fly nicer.
If you don't mind me saying, your fuse bottom seems to be 3mm thick.
On a tiny plane like that, 1.5mm is plenty.
Only trying to help.
Don't despair...it will not take long to make a new one.
Keep it light.
Also when you make a fuse bottom and top, the wood grain should fall at 90% to the fuse length.
The opposite to how you have it.
This is to give more strength.
When you squeeze the fuse or hold it too hard ready to launch it, you cannot crush it because of the wood grain direction!
Keep at it mate.
Woody.
Woody- Gold Member
- Posts : 133
Join date : 2022-04-20
Re: Cox PeeWee Micro Speeder
Thank you for the thumbs up Robert and Eric, happy to see Tobaiies .020 speed projects!
1/2A Nut- Top Poster
- Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
Re: Cox PeeWee Micro Speeder
Thanks for the kind words and the support!
There's always an error creeping in…But I think that's where you learn the most
The fuselage sides are made of 1.5mm balsa, the top and bottom are 1mm.
Maybe I can finish it today in a night shift and test it tomorrow
There's always an error creeping in…But I think that's where you learn the most
The fuselage sides are made of 1.5mm balsa, the top and bottom are 1mm.
Maybe I can finish it today in a night shift and test it tomorrow
Tobaiies- Silver Member
- Posts : 80
Join date : 2020-10-30
Age : 22
Re: Cox PeeWee Micro Speeder

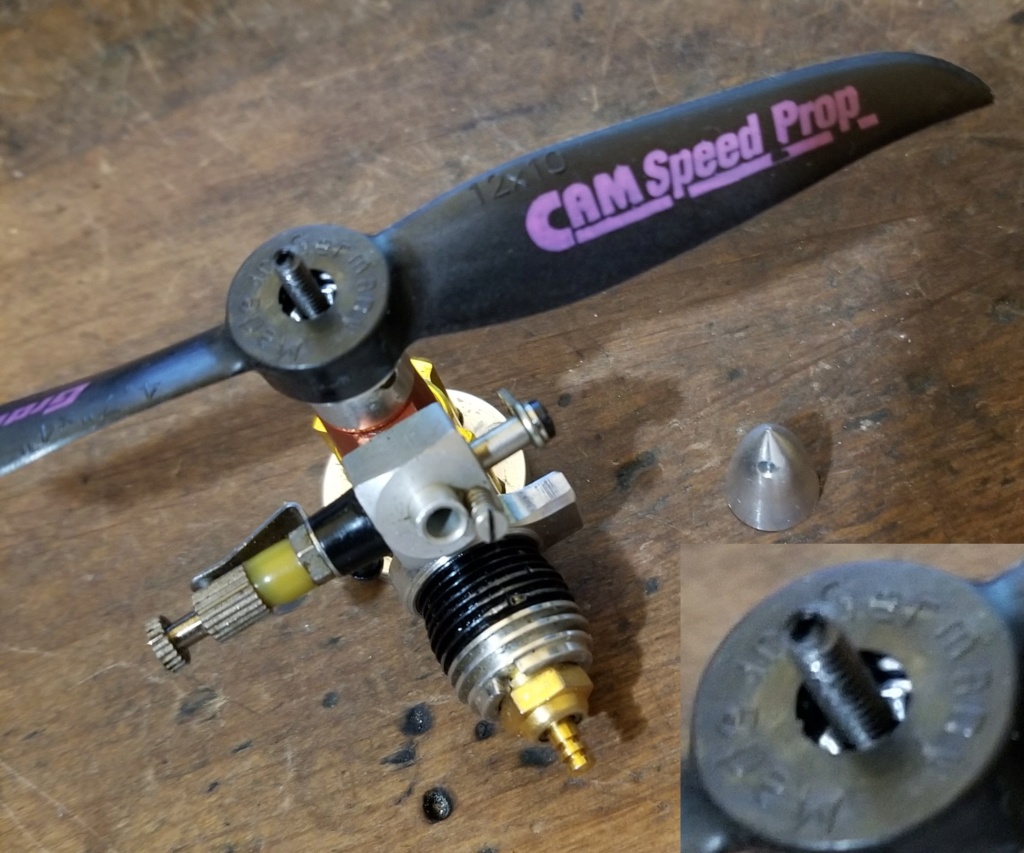

Found out today the Kamtechnik prop plate adapter works with the carbon Cam 4.7x4 speed prop.
Has a snap fit for precision centering, note the stud bolt has a end point socket head uses a .050
allen wrench to lock it down and to avoid seized threads. The grade #8 black oxide bolt sits snug
in the threads with less slop than the stock bolt that came with the valentine .020 spinner nut.
The prop as is should work with the .020 engine with it's constant pitch blades, lower weight and
less bulky at the hub compared to the APC 4.1x4.1. Cam 4x3 does not work with the thrust plate adapter.
The Cam 4.7x4 certainly as a cut down speed prop will do 100+ Left alone will generate notable thrust.
Has a snap fit for precision centering, note the stud bolt has a end point socket head uses a .050
allen wrench to lock it down and to avoid seized threads. The grade #8 black oxide bolt sits snug
in the threads with less slop than the stock bolt that came with the valentine .020 spinner nut.
The prop as is should work with the .020 engine with it's constant pitch blades, lower weight and
less bulky at the hub compared to the APC 4.1x4.1. Cam 4x3 does not work with the thrust plate adapter.
The Cam 4.7x4 certainly as a cut down speed prop will do 100+ Left alone will generate notable thrust.
1/2A Nut- Top Poster
- Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
Re: Cox PeeWee Micro Speeder
Yes getting Better , nice sleek front end / less drag , Looking Good ! Look forward to the flight .
getback- Top Poster
-
Posts : 10439
Join date : 2013-01-18
Age : 67
Location : julian , NC
Re: Cox PeeWee Micro Speeder
Thank you for posting the pics!
1/2A Nut- Top Poster
- Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
1/2A Nut- Top Poster
- Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
Re: Cox PeeWee Micro Speeder
Here the first flights.
I'm not that excited yet. The flight characteristics are ingenious and have improved.
But I will probably make the wing screwable again to reduce the air resistance of the rubber bands. I will also test the hotter glow plug, I'm not sure if it even had more power than with an original one.
I'm not that excited yet. The flight characteristics are ingenious and have improved.
But I will probably make the wing screwable again to reduce the air resistance of the rubber bands. I will also test the hotter glow plug, I'm not sure if it even had more power than with an original one.
Tobaiies- Silver Member
- Posts : 80
Join date : 2020-10-30
Age : 22
Re: Cox PeeWee Micro Speeder
Nice flights especially the first one, but the 020 TeeDee is capable of much higher rpm-s with the stock COX head..
I am also having ambivalent experience with Kamtechnik head only on 020 size TeeDee-s ..while this head blows the door off the 049 and 09 size TeeDee-s, it brings my 020 with the stock 3-bladed COX prop to peaks only near 21...22k, while with the stock COX head my 020 TeeDee spins the stock 3-bladed near 25k on the bench and near 27k when unloading in the air.....I tried adding more gaskets under the Kamtechnik head but it did not improve the output..maybe Brad aka 1/2A Nut can chime in here with a to-do to let the Kamtechnik head do the wonders it does on larger COX engines..?
I am also having ambivalent experience with Kamtechnik head only on 020 size TeeDee-s ..while this head blows the door off the 049 and 09 size TeeDee-s, it brings my 020 with the stock 3-bladed COX prop to peaks only near 21...22k, while with the stock COX head my 020 TeeDee spins the stock 3-bladed near 25k on the bench and near 27k when unloading in the air.....I tried adding more gaskets under the Kamtechnik head but it did not improve the output..maybe Brad aka 1/2A Nut can chime in here with a to-do to let the Kamtechnik head do the wonders it does on larger COX engines..?
balogh- Top Poster
-
Posts : 4958
Join date : 2011-11-06
Age : 66
Location : Budapest Hungary
Re: Cox PeeWee Micro Speeder
The plane flew great, the cooler glow plug tested made 4x3 / 28,670 rpm best noted peak.
CAM 4x3 best peak hit 29,063 rpm with the other plane and stock plug.
For the .020 I use hot plugs and 25% nitro.
What is the ready to fly weight of this version?
I oil the plug threads and adapter threads to help seal from leaks when assembling.
The stock APC 4.1x4.1 will need some backcut or can try extra head shims.
I like rubber bands to protect the wing in a crash or bad tumble.
3 bladed prop - what turbo plug heat range tested best?
CAM 4x3 best peak hit 29,063 rpm with the other plane and stock plug.
For the .020 I use hot plugs and 25% nitro.
What is the ready to fly weight of this version?
I oil the plug threads and adapter threads to help seal from leaks when assembling.
The stock APC 4.1x4.1 will need some backcut or can try extra head shims.
I like rubber bands to protect the wing in a crash or bad tumble.
3 bladed prop - what turbo plug heat range tested best?
1/2A Nut- Top Poster
- Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
Re: Cox PeeWee Micro Speeder
Brad I used medium hot turbo plug, 20% nitro and 2 then 3 shims, and was never able to approach the tpm-s with stock COX heads...strangely, the Kamtechnik heads are superb in all larger COX engines, better than Nelson..
balogh- Top Poster
-
Posts : 4958
Join date : 2011-11-06
Age : 66
Location : Budapest Hungary
Re: Cox PeeWee Micro Speeder
How did 1 shim do?
Any tests with 2 blade props?
Any tests with 2 blade props?
1/2A Nut- Top Poster
- Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
Re: Cox PeeWee Micro Speeder
Brad I have only the COX 2 bladed props for 020 size engines (my APC-s are larger) that the TD spins way slower than the 3-bladed. So my benchmark is set by the 3-bladed and I compare the heads using that prop only.
balogh- Top Poster
-
Posts : 4958
Join date : 2011-11-06
Age : 66
Location : Budapest Hungary
Re: Cox PeeWee Micro Speeder
balogh wrote:Brad I have only the COX 2 bladed props for 020 size engines (my APC-s are larger) that the TD spins way slower than the 3-bladed. So my benchmark is set by the 3-bladed and I compare the heads using that prop only.
Try 1 shim for more rpm
The adapter was set up and tested for the more widely used Cox 4.5x2 prop.
The compression was adjusted to serve with one head shim as many folks
may not have spare shims to add.
Absolutely did not give up or settle with numerous prototypes tested until the adapter
was honed to make more rpm than stock. Same engine and prop saved for only testing.
1/2A Nut- Top Poster
- Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
Re: Cox PeeWee Micro Speeder
Tobaiies, is the wing made of hard balsa plank that you sanded to an airfoil? Did you use any template or just sanded it by instinct?
That 90 grams is impressive.. way below the 160 grams that our idiotic drone laws set as the max. weight of a plane without mandatory registration, insurance, airfield permit etc..all my planes are heavier than 160 grams so I fly as an outlaw..
That 90 grams is impressive.. way below the 160 grams that our idiotic drone laws set as the max. weight of a plane without mandatory registration, insurance, airfield permit etc..all my planes are heavier than 160 grams so I fly as an outlaw..
balogh- Top Poster
-
Posts : 4958
Join date : 2011-11-06
Age : 66
Location : Budapest Hungary
Re: Cox PeeWee Micro Speeder
1/2A Nut wrote:The plane flew great, the cooler glow plug tested made 4x3 / 28,670 rpm best noted peak.
CAM 4x3 best peak hit 29,063 rpm with the other plane and stock plug.
For the .020 I use hot plugs and 25% nitro.
Brad I suppose the 020 Kamtechnik head was designed with consideration of the larger volume of glow filament cavity of a turbo plug, than in a stock head? The cavity in a turbo plug seems to have much larger volume than the COX head..the dome in the Kamtechnik head is flatter though, so the combination of the two volumes i.e. cavity and dome may end up in identical combustion chamber volumes in the Kam and COX heads?
balogh- Top Poster
-
Posts : 4958
Join date : 2011-11-06
Age : 66
Location : Budapest Hungary
Re: Cox PeeWee Micro Speeder

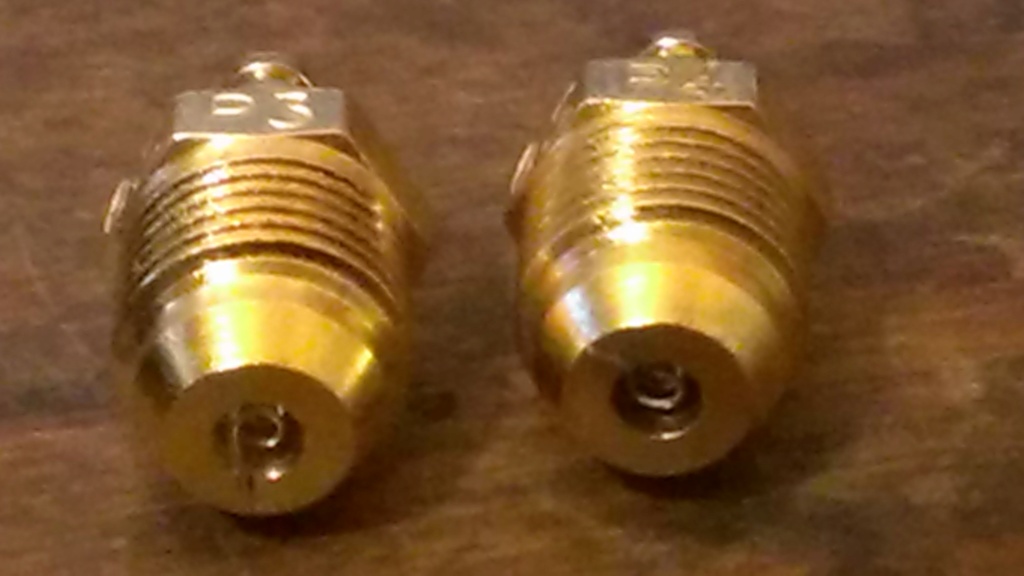

Yes the volume from the glow plug element hole makes an impact.
Some glow plug designs have larger holes than others, some are really bad.
I use OS Gold Plugs to insure good elements and conductivity for starting.
Key is to ensure you have a good seal and the seat for the glow plug
has conformed to the plug manufactures design. I double check after
the engine has been heated up from running.
Sometimes the element needs to be plucked up out of the hole some.
I use a needle to carefully raise it up.
Some glow plug designs have larger holes than others, some are really bad.
I use OS Gold Plugs to insure good elements and conductivity for starting.
Key is to ensure you have a good seal and the seat for the glow plug
has conformed to the plug manufactures design. I double check after
the engine has been heated up from running.
Sometimes the element needs to be plucked up out of the hole some.
I use a needle to carefully raise it up.
1/2A Nut- Top Poster
- Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
Re: Cox PeeWee Micro Speeder
Exactly, the wing is made from one piece of balsa and simply sanded down by feel, but with a few auxiliary lines.
I edited the APC 4.1*4.1, you can clearly see the difference!
At the end I tested the Kamtechnik adapter with a hot glow plug. And this time the engine really has even more power than with the original head!
I think those are the fastest flights so far.

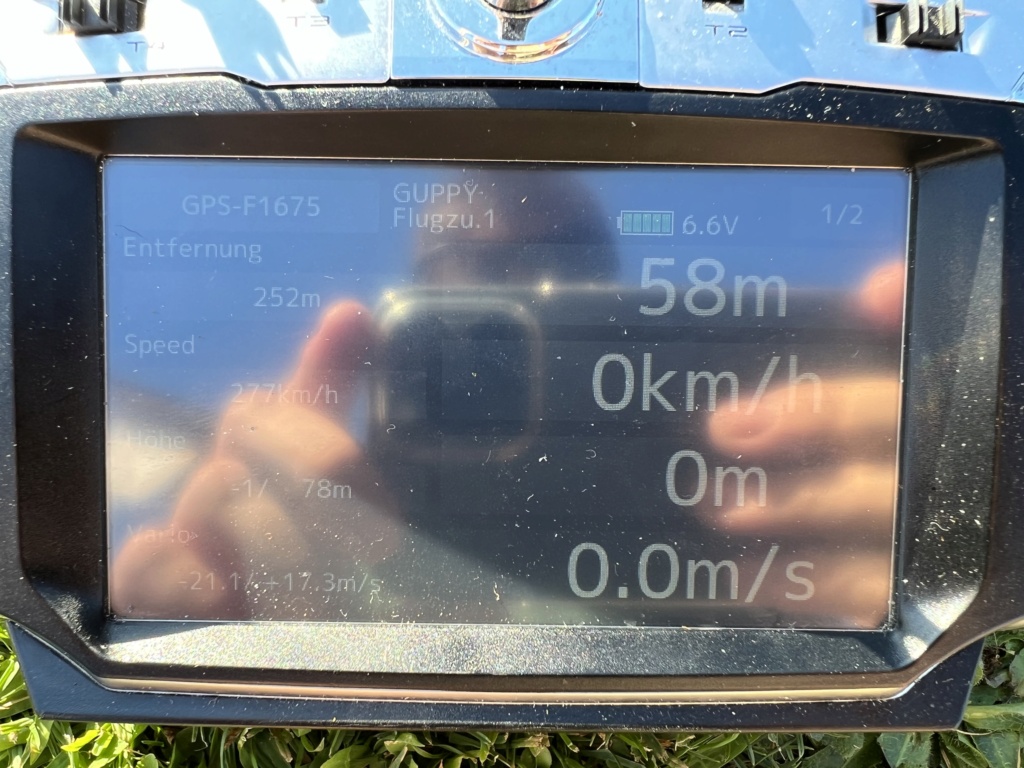

I tried to measure something with the GPS but the measurements seems wrong. (I think )
I edited the APC 4.1*4.1, you can clearly see the difference!
At the end I tested the Kamtechnik adapter with a hot glow plug. And this time the engine really has even more power than with the original head!
I think those are the fastest flights so far.
I tried to measure something with the GPS but the measurements seems wrong. (I think )
Tobaiies- Silver Member
- Posts : 80
Join date : 2020-10-30
Age : 22
Re: Cox PeeWee Micro Speeder
Congratulations the plane has indeed made a faster pass!
Do you have a photo of the prop with back cut?
To reach 222kmh / 138 mph would need a prop pitch rpm of 35,560 rpm not counting prop slip or if down wind pass.
At 1:53 minutes the best pass hit 28,262 rpm making a prop pitch speed of 110 mph or 177 kmh
20% castor and 35% nitro should keep the rpms on point throughout the flight. Beats your old record
of 156 kmh / 97 mph pass + 21 kmh / 13 mph with the new design thus far.
Engine starts off strong but then something happens dropping rpm, some possible reasons:
Cooling down in flight creating a rich fuel state.
NV is moving (opening up a bit due to vibrations) can seal and hold with fuel line.
Setting NV quick to peak rpm with the plane level and launching before it heats to peak thermal state prompting
a richer NV setting to hold peak rpm in the hand. If launched before it peaks and sags will cool down in the air enough
to balance / set for best thermal state / rpm in flight.
Castor oil helps stabilize the peak thermal state on the ground so there is less flux between in flight additional air
cooling and thermal state on the ground. 1/2A fuel helps reduce hunting for the best NV setting for in flight rpm.
Do you have a photo of the prop with back cut?
To reach 222kmh / 138 mph would need a prop pitch rpm of 35,560 rpm not counting prop slip or if down wind pass.
At 1:53 minutes the best pass hit 28,262 rpm making a prop pitch speed of 110 mph or 177 kmh
20% castor and 35% nitro should keep the rpms on point throughout the flight. Beats your old record
of 156 kmh / 97 mph pass + 21 kmh / 13 mph with the new design thus far.
Engine starts off strong but then something happens dropping rpm, some possible reasons:
Cooling down in flight creating a rich fuel state.
NV is moving (opening up a bit due to vibrations) can seal and hold with fuel line.
Setting NV quick to peak rpm with the plane level and launching before it heats to peak thermal state prompting
a richer NV setting to hold peak rpm in the hand. If launched before it peaks and sags will cool down in the air enough
to balance / set for best thermal state / rpm in flight.
Castor oil helps stabilize the peak thermal state on the ground so there is less flux between in flight additional air
cooling and thermal state on the ground. 1/2A fuel helps reduce hunting for the best NV setting for in flight rpm.
1/2A Nut- Top Poster
- Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
Re: Cox PeeWee Micro Speeder
Interesting facts Brad , if he follows your advice this thing will fly the wings off LOL I see you don't have a fuel line seal over the NVA for a better seal , that's were i would start and what ever our friend suggest I am just watching and learning some thing even the ones i don't all understand .
getback- Top Poster
-
Posts : 10439
Join date : 2013-01-18
Age : 67
Location : julian , NC
Page 3 of 4 • 1, 2, 3, 4
Similar topics
» Wingtip Micro Cam Attached to one of Bernie's Micro Servos
» Robbe Speeder E converted to Cox Conquest
» Cox snow speeder
» Rebel Snow speeder
» .010 TeeDee Tiny Speeder
» Robbe Speeder E converted to Cox Conquest
» Cox snow speeder
» Rebel Snow speeder
» .010 TeeDee Tiny Speeder
Page 3 of 4
Permissions in this forum:
You cannot reply to topics in this forum
