Cox Engine of The Month
Acceleration ring Cox Tee Dee .010
Page 2 of 4
Page 2 of 4 • 1, 2, 3, 4
Re: Acceleration ring Cox Tee Dee .010
Friend Brad ... thank you for the inconvenience and your time, I appreciate your cooperation !!
Look, I have taken pictures of my Cox Tee Dee .010 cylinder, removing the lip it seems that nothing is altered, I even see that there is a base to make it stop and seal perfect ... I think the best thing to do then is to remove the lip and make a straight bushing ...
I wonder what is the true purpose of the original factory lip ... maybe make a perfect seal?
Look, I have taken pictures of my Cox Tee Dee .010 cylinder, removing the lip it seems that nothing is altered, I even see that there is a base to make it stop and seal perfect ... I think the best thing to do then is to remove the lip and make a straight bushing ...
I wonder what is the true purpose of the original factory lip ... maybe make a perfect seal?
MauricioB- Top Poster
- Posts : 3712
Join date : 2016-02-17
Age : 53
Location : ARG
Re: Acceleration ring Cox Tee Dee .010
Thank you Mauricio
I enjoy helping and sharing my findings. I have always said the easy way is to
carefully remove the footing material from the cylinder. It is very small not
as easy to handle but can be done. I carefully used my bench grinder to remove
80% of the material then carefully fine filed away the rest. It does make it so
much more easy to fabricate a typical exhaust sleeve from there.
Yes the original thin walled cylinders needed the lip, I think they just carried
over the design to the TD .010. Just have to be careful when filing the material
away. I put tape over the threads to protect them during the removal process
of the footing. Just oil the threads when you assemble the engine and everything
will seal just fine.
I enjoy helping and sharing my findings. I have always said the easy way is to
carefully remove the footing material from the cylinder. It is very small not
as easy to handle but can be done. I carefully used my bench grinder to remove
80% of the material then carefully fine filed away the rest. It does make it so
much more easy to fabricate a typical exhaust sleeve from there.
Yes the original thin walled cylinders needed the lip, I think they just carried
over the design to the TD .010. Just have to be careful when filing the material
away. I put tape over the threads to protect them during the removal process
of the footing. Just oil the threads when you assemble the engine and everything
will seal just fine.
1/2A Nut- Top Poster
- Posts : 3538
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
MauricioB- Top Poster
- Posts : 3712
Join date : 2016-02-17
Age : 53
Location : ARG
Re: Acceleration ring Cox Tee Dee .010
Looks good , you must have used your lathe? What is the finished diameter?
Last edited by 1/2A Nut on Thu Mar 07, 2019 3:23 am; edited 1 time in total
1/2A Nut- Top Poster
- Posts : 3538
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
Re: Acceleration ring Cox Tee Dee .010
Are you going with a steel ring? It would be best less expansion / leaks.
1/2A Nut- Top Poster
- Posts : 3538
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
Re: Acceleration ring Cox Tee Dee .010
MauricioB wrote:Friend Brad
I wonder what is the true purpose of the original factory lip ... maybe make a perfect seal?
It distributes the pressure from the clamping load when the cylinder is screwed in. The overlap without the flange is only ~.15mm (not including any corner breaks!) and the case would be damaged with repeated installation/removal or possibly just upon tightening. The .010 on my desk appears to have a large chamfer on the crankcase cylinder bore, I doubt this particular one would even seat if I cut the flange off the cylinder.
gkamysz- Gold Member
- Posts : 416
Join date : 2018-02-23
Location : Chicagoland
Re: Acceleration ring Cox Tee Dee .010
This TD .010 was the first successful throttled cylinder
It has over 60 flights / bench tests. Cox wrench tighten
at via the glow plug works fine. There should be no reason
to take it apart over an over to the point of digging into
the case. If so would a bit of compression may have to add
a extra head shim. Must be gentle with the wee micro .010
If you make steel rings with throttle clips folks would buy them.

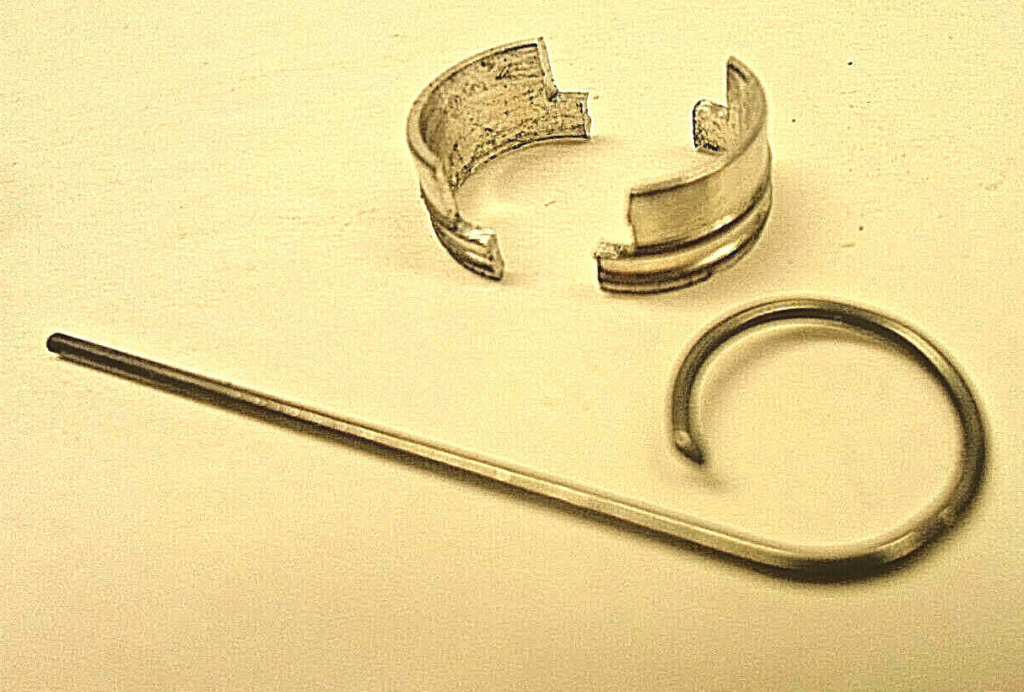

Simple two steel halves split in the middle at the sleeves exhaust ports
retained by a throttle clip. As you throttle down the splits will not leak.
Or thick walled aluminum / split with clip to retain the two halves.
Best all you could dream of would be throttle carb and exhaust manifold / header.
COX TEE DEE .010 RC ENGINE DE HAVILLAND DH80A
It has over 60 flights / bench tests. Cox wrench tighten
at via the glow plug works fine. There should be no reason
to take it apart over an over to the point of digging into
the case. If so would a bit of compression may have to add
a extra head shim. Must be gentle with the wee micro .010
If you make steel rings with throttle clips folks would buy them.
Simple two steel halves split in the middle at the sleeves exhaust ports
retained by a throttle clip. As you throttle down the splits will not leak.
Or thick walled aluminum / split with clip to retain the two halves.
Best all you could dream of would be throttle carb and exhaust manifold / header.
COX TEE DEE .010 RC ENGINE DE HAVILLAND DH80A
Last edited by 1/2A Nut on Fri Mar 08, 2019 9:04 am; edited 1 time in total
1/2A Nut- Top Poster
- Posts : 3538
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
Re: Acceleration ring Cox Tee Dee .010
gkamysz wrote:MauricioB wrote:Friend Brad
I wonder what is the true purpose of the original factory lip ... maybe make a perfect seal?
It distributes the pressure from the clamping load when the cylinder is screwed in. The overlap without the flange is only ~.15mm (not including any corner breaks!) and the case would be damaged with repeated installation/removal or possibly just upon tightening. The .010 on my desk appears to have a large chamfer on the crankcase cylinder bore, I doubt this particular one would even seat if I cut the flange off the cylinder.
Sir, you are right! ..
When I rearmed my engine, I changed the height of the cylinder, so I had to re-install a solution according to the situation ... thanks for your message and information
MauricioB- Top Poster
- Posts : 3712
Join date : 2016-02-17
Age : 53
Location : ARG
Re: Acceleration ring Cox Tee Dee .010
Friends !!! ... I have succeeded!
I will try to describe the steps so that you understand what I did ...

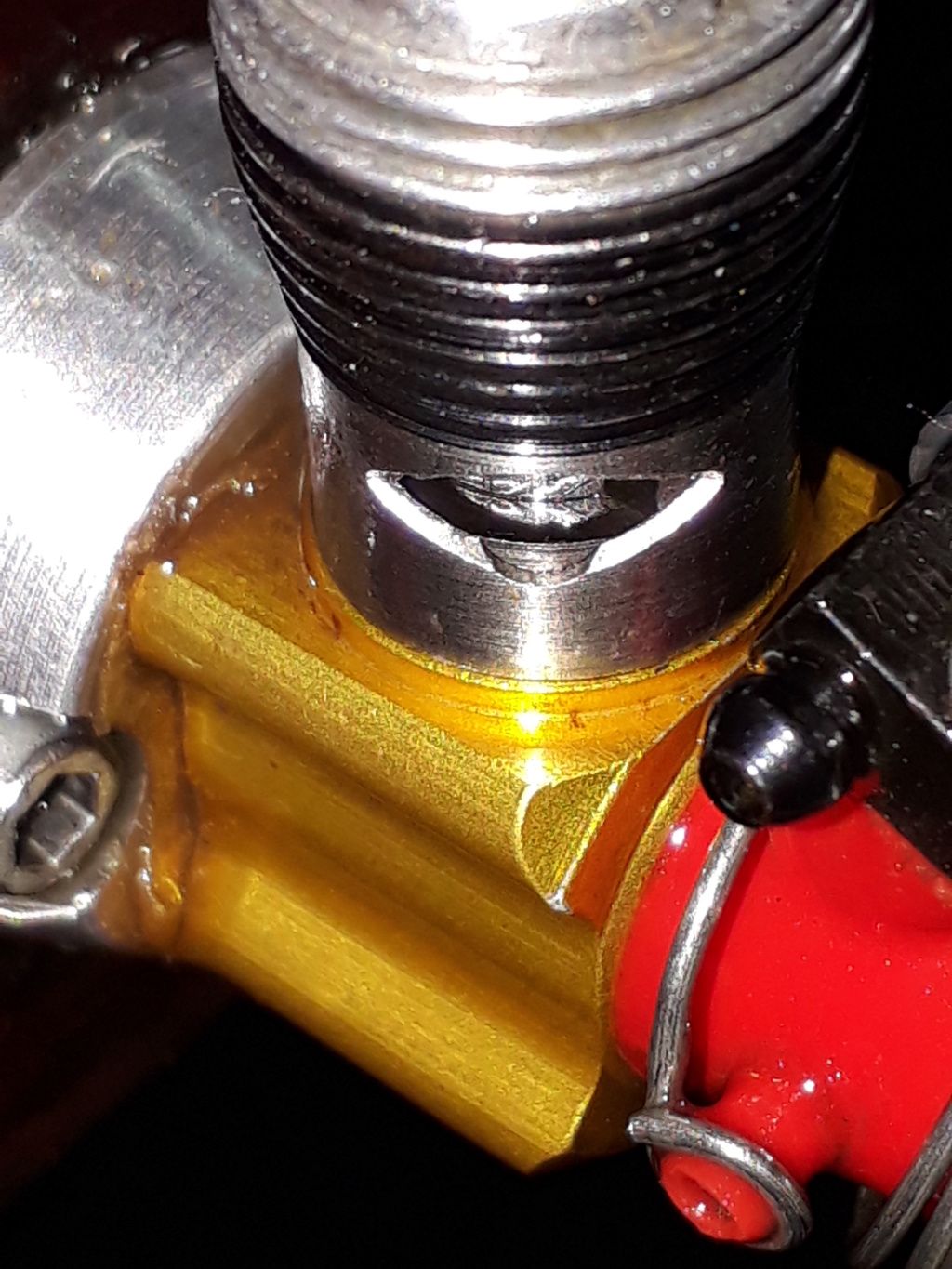

1) I removed the socket or lip and prepared the surface of the cylinder.
2) Arm the engine to test the distance of the cylinder (if it had changed), and note that it went a few tenths below.
I thought I had ruined my engine, but, during my dreams, I came up with the following:
How about, make a straight bushing twinned with the original cylinder, that had the sufficient thickness and height so that the cylinder returns to its place, tightened said cylinder normally as if it had socket or lip ... well
3) Then make a perfectly snapped bushing in cylinder, it would be a (false cylinder wall)

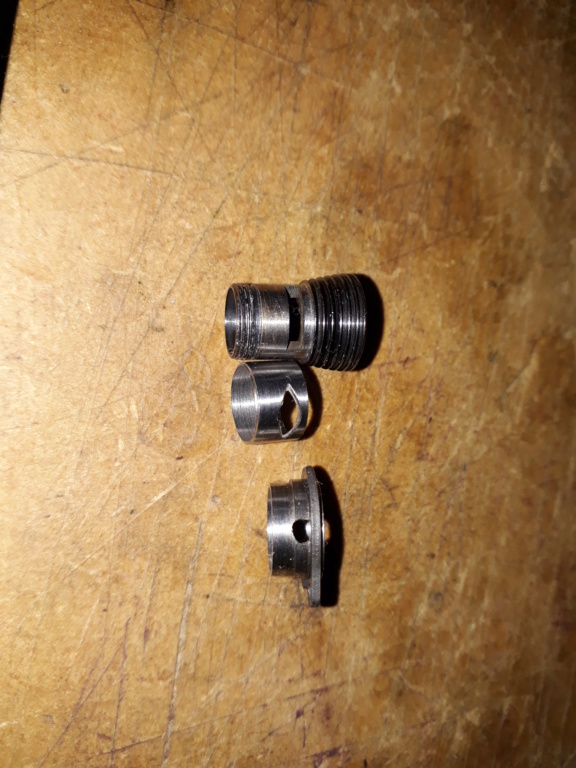

4) I also made an acceleration ring, that was twinned with that hub ... I achieved it ...
It was a very delicate job, a lot of passion and dedication ... I have achieved it!
Brad, I'm happy! Now it's 4 o'clock in the morning here and I went to the engine, I've seen very good results, but, I do not want to make a lot of noise ... my neighbors sleep, tomorrow God made a video to share...
A really incredible and delicate project!
I will try to describe the steps so that you understand what I did ...
1) I removed the socket or lip and prepared the surface of the cylinder.
2) Arm the engine to test the distance of the cylinder (if it had changed), and note that it went a few tenths below.
I thought I had ruined my engine, but, during my dreams, I came up with the following:
How about, make a straight bushing twinned with the original cylinder, that had the sufficient thickness and height so that the cylinder returns to its place, tightened said cylinder normally as if it had socket or lip ... well
3) Then make a perfectly snapped bushing in cylinder, it would be a (false cylinder wall)
4) I also made an acceleration ring, that was twinned with that hub ... I achieved it ...
It was a very delicate job, a lot of passion and dedication ... I have achieved it!
Brad, I'm happy! Now it's 4 o'clock in the morning here and I went to the engine, I've seen very good results, but, I do not want to make a lot of noise ... my neighbors sleep, tomorrow God made a video to share...
A really incredible and delicate project!
MauricioB- Top Poster
- Posts : 3712
Join date : 2016-02-17
Age : 53
Location : ARG
Re: Acceleration ring Cox Tee Dee .010
Beautiful work, Mauricio,
I am looking forward to seeing the video!
I am looking forward to seeing the video!
fit90- Diamond Member
- Posts : 1341
Join date : 2011-08-12
Location : Naples, Florida
Re: Acceleration ring Cox Tee Dee .010
Hello friend you have been Busy , Looking good will bee watching for the results .
getback- Top Poster
-
Posts : 10442
Join date : 2013-01-18
Age : 67
Location : julian , NC
Re: Acceleration ring Cox Tee Dee .010
That's some pretty fine engineering there. Some nice machining too. Looking forward to the video. Very nicely done Mauricio!
Dave P.- Gold Member
- Posts : 477
Join date : 2017-07-31
Age : 67
Location : Durham, NC
Re: Acceleration ring Cox Tee Dee .010
Yes Mauricio it is how I felt when my 3rd TD .010 throttle sleeve finally started functioning as planed.
I did not have to make a secondary sleeve, at TDC SPI is fine. Cylinder diameter is 0.322"
Many hours spent developing a usable throttle sleeve / designing and building a plane for the day I could fly a .010 RC plane.
Here is the entire plight to flight!
1st throttle sleeve design no flange just an aluminum sleeve.
Uploaded on May 4, 2014
1st sleeve 20k to 24.2k
Made a 2nd sleeve to test smaller exhaust ports:
Published on May 4, 2014
Down to around 14k with this effort.
3rd generation sleeve tested:
Published on May 7, 2014
Cox TD .010 Throttle Sleeve 3rd Gen Sleeve Test, note I had it set for 3 blade so will have to divide by 3
and times by 2. Was in the 11.8k range.
My design / build Lil Speedy I
Published on May 16, 2014
Maiden flight with the throttled TD .010
1st / 2nd and 3rd flights of a new design for the TD .010
Unedited to document the experience of what it takes to fly
the new plane and run the engine.
Upgraded to the TD .020 with throttle:1080P vid;
Published on Jul 12, 2014
TD .020 3ch Lil Speedy
21in span exhaust throttle sleeve, flying with a Cox 4 x 2.5 prop.
10cc tank / With fuel RTF 5.3oz / 25% nitro 18% castor
Static 17,603 rpm / Best pass unloaded 25,579 rpm / 61 mph.
I did not have to make a secondary sleeve, at TDC SPI is fine. Cylinder diameter is 0.322"
Many hours spent developing a usable throttle sleeve / designing and building a plane for the day I could fly a .010 RC plane.
Here is the entire plight to flight!
1st throttle sleeve design no flange just an aluminum sleeve.
Uploaded on May 4, 2014
1st sleeve 20k to 24.2k
Made a 2nd sleeve to test smaller exhaust ports:
Published on May 4, 2014
Down to around 14k with this effort.
3rd generation sleeve tested:
Published on May 7, 2014
Cox TD .010 Throttle Sleeve 3rd Gen Sleeve Test, note I had it set for 3 blade so will have to divide by 3
and times by 2. Was in the 11.8k range.
My design / build Lil Speedy I
Published on May 16, 2014
Maiden flight with the throttled TD .010
1st / 2nd and 3rd flights of a new design for the TD .010
Unedited to document the experience of what it takes to fly
the new plane and run the engine.
Upgraded to the TD .020 with throttle:1080P vid;
Published on Jul 12, 2014
TD .020 3ch Lil Speedy
21in span exhaust throttle sleeve, flying with a Cox 4 x 2.5 prop.
10cc tank / With fuel RTF 5.3oz / 25% nitro 18% castor
Static 17,603 rpm / Best pass unloaded 25,579 rpm / 61 mph.
Last edited by 1/2A Nut on Sat Mar 09, 2019 5:29 am; edited 1 time in total
1/2A Nut- Top Poster
- Posts : 3538
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
Re: Acceleration ring Cox Tee Dee .010
Well friends, I am very happy with the results ... I love this Cox Tee Dee .010 R / C !!
I told you what I did in the video:
Nitro: 20%
Oil: 20%
Methanol: 60%
1) I went to the engine, only with the cylinder liner, that is, without the throttle ring, that helps me to know how many laps the engine is delivering, happily delivers some 26700 rpm with gray rigid Cox propeller.
2) arm the engine with the accelerator ring and found an impeccable gear, can go from 9800 laps to 25000 and more, only that the video was not recorded, I had peaks of 26470 rpm, but that with the engine cold.
3) the throttle ring works so well that I can stop the engine if I completely close the gait outlet, that is important if one wants to lower the model and land.
I gather that, the engine can comfortably run between 9750 rpm to 26000 rpm ranges with this system.
I hope you enjoy the video, I am happy!
My thanks to:
Brad, Greg and Mario we all add up for this to be possible!
I told you what I did in the video:
Nitro: 20%
Oil: 20%
Methanol: 60%
1) I went to the engine, only with the cylinder liner, that is, without the throttle ring, that helps me to know how many laps the engine is delivering, happily delivers some 26700 rpm with gray rigid Cox propeller.
2) arm the engine with the accelerator ring and found an impeccable gear, can go from 9800 laps to 25000 and more, only that the video was not recorded, I had peaks of 26470 rpm, but that with the engine cold.
3) the throttle ring works so well that I can stop the engine if I completely close the gait outlet, that is important if one wants to lower the model and land.
I gather that, the engine can comfortably run between 9750 rpm to 26000 rpm ranges with this system.
I hope you enjoy the video, I am happy!
My thanks to:
Brad, Greg and Mario we all add up for this to be possible!
MauricioB- Top Poster
- Posts : 3712
Join date : 2016-02-17
Age : 53
Location : ARG
MauricioB- Top Poster
- Posts : 3712
Join date : 2016-02-17
Age : 53
Location : ARG
Re: Acceleration ring Cox Tee Dee .010
That sounds Fantastic !! Friend you are amazing to have made this work for you from raw materials I am happy it works very good and will stop the engine
getback- Top Poster
-
Posts : 10442
Join date : 2013-01-18
Age : 67
Location : julian , NC
Re: Acceleration ring Cox Tee Dee .010
The results are excellent! Great solution for the cylinder as well.
gkamysz- Gold Member
- Posts : 416
Join date : 2018-02-23
Location : Chicagoland
Re: Acceleration ring Cox Tee Dee .010
Last edited by 1/2A Nut on Sat Mar 09, 2019 8:48 pm; edited 1 time in total
1/2A Nut- Top Poster
- Posts : 3538
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
Re: Acceleration ring Cox Tee Dee .010
The carbon 3x3 are good too TD .010 bullet spinner centers very well adds rpm!
Published on Jun 23, 2018
Cox TD .010 / 3x3 Prop / Best Peak 33,107 rpm / 94 mph
Testing new CNC fuel tank Carbon 3x3 Prop / Best Peak 33,107 rpm
More typical 32,138 rpm / 91 mph pitch speed / 3.6oz thrust
.058hp / 43.3w / tank duration 2.57 mins. due to 35% nitro / 20% oil.
Published on Jun 23, 2018
Cox TD .010 / 3x3 Prop / Best Peak 33,107 rpm / 94 mph
Testing new CNC fuel tank Carbon 3x3 Prop / Best Peak 33,107 rpm
More typical 32,138 rpm / 91 mph pitch speed / 3.6oz thrust
.058hp / 43.3w / tank duration 2.57 mins. due to 35% nitro / 20% oil.
1/2A Nut- Top Poster
- Posts : 3538
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
Re: Acceleration ring Cox Tee Dee .010
Friends ... thanks for your feedback !.
Where I live many things must be created pure imagination, because what a society has advanced in years, in others there is retrogression ... unfortunately.
I am fortunate to be able to think, to be able to express myself, to be able to create ...
I want to dedicate my happiness from here !! ... to have control of a Cox Tee Dee engine .010 ... it's really wonderful.
I leave this photo and this dedication ... Mr. Leroy Cox and his team ... has exceeded any limit that exists in the world ... simply a Genius!
Where I live many things must be created pure imagination, because what a society has advanced in years, in others there is retrogression ... unfortunately.
I am fortunate to be able to think, to be able to express myself, to be able to create ...
I want to dedicate my happiness from here !! ... to have control of a Cox Tee Dee engine .010 ... it's really wonderful.
I leave this photo and this dedication ... Mr. Leroy Cox and his team ... has exceeded any limit that exists in the world ... simply a Genius!
MauricioB- Top Poster
- Posts : 3712
Join date : 2016-02-17
Age : 53
Location : ARG
Re: Acceleration ring Cox Tee Dee .010
Looks good Mauricio ready to go!!!!!
Are you going to use it in your existing .010 plane or put in in a new project?
What about a speed plane? How much does it weight as shown?
Check out the size difference to the TD .15 with throttle sleeve!
Do you have any .15's? This one as shown weighs 5.15 oz or 146g!
What a beast!
Are you going to use it in your existing .010 plane or put in in a new project?
What about a speed plane? How much does it weight as shown?
Check out the size difference to the TD .15 with throttle sleeve!
Do you have any .15's? This one as shown weighs 5.15 oz or 146g!
What a beast!
1/2A Nut- Top Poster
- Posts : 3538
Join date : 2013-10-20
Age : 61
Location : Brad in Texas
Re: Acceleration ring Cox Tee Dee .010
Hello Brad! ... thanks friend ... yes, I like how it was finished, now that I have the lathe take advantage to make some slots to the aluminum bench type RR-1 haha, I like how it is.
I plan to make a new project, so as soon as I have time I will investigate and see what I can manufacture to enjoy the engine.
Yes, I have the Sportsman .15 T / C and the Medallion .15 R / C, I do not have Tee Dee R / C, but when comparing with the Medallion .15, you can see the big difference in sizes!
I plan to make a new project, so as soon as I have time I will investigate and see what I can manufacture to enjoy the engine.
Yes, I have the Sportsman .15 T / C and the Medallion .15 R / C, I do not have Tee Dee R / C, but when comparing with the Medallion .15, you can see the big difference in sizes!
MauricioB- Top Poster
- Posts : 3712
Join date : 2016-02-17
Age : 53
Location : ARG
Re: Acceleration ring Cox Tee Dee .010
András ... are you out there ?? ... are you going to make a new video with the Pet? System, it would be interesting to have data of all possible forms of motor control Cox Tee Dee .010
On the other hand, I suppose, I think, that the system that I attached here below in the photo, should not be really effective, I do not think ... but I have not seen any working on the Internet, much less personally to ensure my thinking. ..someone have it in recorded video please?
On the other hand, I suppose, I think, that the system that I attached here below in the photo, should not be really effective, I do not think ... but I have not seen any working on the Internet, much less personally to ensure my thinking. ..someone have it in recorded video please?
MauricioB- Top Poster
- Posts : 3712
Join date : 2016-02-17
Age : 53
Location : ARG
Re: Acceleration ring Cox Tee Dee .010
gkamysz wrote:The results are excellent! Great solution for the cylinder as well.
I appreciate your message Greg, thank you for your time!
MauricioB- Top Poster
- Posts : 3712
Join date : 2016-02-17
Age : 53
Location : ARG
Re: Acceleration ring Cox Tee Dee .010
MauricioB wrote:András ... are you out there ?? ... are you going to make a new video with the Pet? System, it would be interesting to have data of all possible forms of motor control Cox Tee Dee .010
On the other hand, I suppose, I think, that the system that I attached here below in the photo, should not be really effective, I do not think ... but I have not seen any working on the Internet, much less personally to ensure my thinking. ..someone have it in recorded video please?
Hi Mauricio..I am following this thread and shot a video today but due to insufficient natural light in my garage the tachometer did not work well. I will repeat the test later when weather and light conditions are better.
balogh- Top Poster
-
Posts : 4959
Join date : 2011-11-06
Age : 66
Location : Budapest Hungary
Page 2 of 4 • 1, 2, 3, 4
Similar topics
» Acceleration Control Ring.
» Acceleration control rings, exhaust choking and engine heating, and fuel and oil mixes
» 3.8 Million RPM, 1338mph, 24.3M G's & Ultimate acceleration 0 to 2.1 million RPM in 1ms (0.001 second)!
» almost there with the b.. ring
» Ring Rat 100
» Acceleration control rings, exhaust choking and engine heating, and fuel and oil mixes
» 3.8 Million RPM, 1338mph, 24.3M G's & Ultimate acceleration 0 to 2.1 million RPM in 1ms (0.001 second)!
» almost there with the b.. ring
» Ring Rat 100
Page 2 of 4
Permissions in this forum:
You cannot reply to topics in this forum
