Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  1/2A Nut Sun Dec 03, 2017 4:37 am

The NANO I is almost ready for another round of testing with the TD .020 RC need to fire
up the engine and check the throws on the throttle next. All up weight of this 3ch effort
is 3.6oz. with a thrust to weight ratio of 1.27:1 nearly 30% more and 92 mph static.
Will use a new 4k vid camera with reasonable ability to capture clarity during high speed passes.


Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6217


Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6216
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  balogh Sun Dec 03, 2017 5:59 am

Brad like always this is awsome...looking forward to yor vid.
balogh
balogh
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 4958
Join date : 2011-11-06
Age : 66
Location : Budapest Hungary

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  MauricioB Sun Dec 03, 2017 7:13 am

Friend, I'm attentive to your video .....
Here is someone who wants to collaborate controlling the speed! Eyebrows Flying
Very Happy
Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Contro10
MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  1/2A Nut Sun Dec 03, 2017 8:51 pm

Thank you Gents!

Set up the throttle sleeve and top end the original tank has
small 1.5mm ID fuel line for the TD .010 it has robbed some top
end out of the .020 engine the NV had to be opened up 4 3/4 turns
to feed the thirsty beast. The restriction on the breather line
is the same 1.5 ID. A must for fuel draw with the TD .010's small
carb, standard 1/2A line causes weak draw less rpm unsteady screaming.
So will just have to take the hit I glued in the tank as part of the former
structure up front.

3.75x4
Static 21,560 rpm / 4.23oz thrust 82 mph best steady.
Best idle was 7,105 rpm without messing with the trim.

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Nano_t10
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  1/2A Nut Mon Dec 04, 2017 3:08 am

Inside view cg is a bit forward about 1/8th inch which is quite a bit for a small plane.
The plane has over 80 flights to date. 4 to 6 flights per trip to the field depending on
wind conditions and temp. A quarter for size reference.

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6218


RC Plane
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  MauricioB Mon Dec 04, 2017 5:20 am

Yes friend, you see a super compact work there inside the fuselage ... I'm attentive to the video, it will surely look great in flight! Beer Cheers
MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  1/2A Nut Mon Dec 04, 2017 8:30 pm

Yes super compact!
Here is a comparison to the NANO II / 2ch just 2.2oz / 62.3g
Has a ply fuselage too.


Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Nano_110


Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6310

Eyebrows
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  1/2A Nut Tue Dec 05, 2017 8:09 pm

Made a micro size thrust washer this evening for one of my TD .020's
This one had a horrible wear gap of .5mm just too much play for me to
stomach. Will help reduce oil drip out the front and more so less play
for the crank pin / con rod with no rub wear to the back plate. Note
thrust washer must fit over the crank shaft dia. not the spline.


Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Td_02012
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  1/2A Nut Thu Dec 07, 2017 9:38 am

I like the proportions of the NANO II design enough to resize it for TD.049 thru .074 engines.



Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Nano_i10
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  MauricioB Thu Dec 07, 2017 9:47 am

1/2A Nut wrote:I like the proportions of the NANO II design enough to resize it for TD.049 thru .074 engines.



Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Nano_i10

Brad, the wings in all cases are solid raft ?, giving the profile to sandpaper?
MauricioB
MauricioB
Top Poster
Top Poster

Posts : 3712
Join date : 2016-02-16
Age : 53
Location : ARG

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  balogh Thu Dec 07, 2017 11:51 am

[quote="1/2A Nut"]Made a micro size thrust washer this evening for one of my TD .020's
This one had a horrible wear gap of .5mm just too much play for me to
stomach. Will help reduce oil drip out the front and more so less play
for the crank pin / con rod with no rub wear to the back plate. Note
thrust washer must fit over the crank shaft dia. not the spline.
quote]

Brad what is the material you used for the thrust washer? I have a similar issue with a fairly used but still as-new 020 and put a metric, normal washer between the prop drive plate and the collet..but do not like it and would like to swap with something more profesional.
balogh
balogh
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 4958
Join date : 2011-11-06
Age : 66
Location : Budapest Hungary

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  1/2A Nut Thu Dec 07, 2017 2:39 pm

Yes solid balsa air-foiled wings sold by SIG

http://www.gravesrc.com/sig-balsa-1-4-x-4-x-36-airfoil-sheet.html

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Sig_ai10

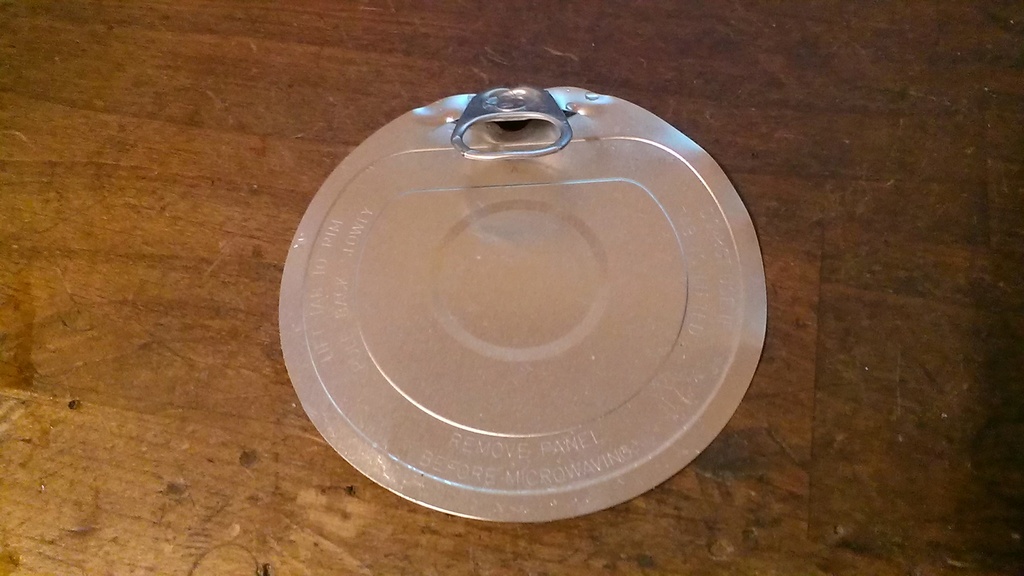

I used .3mm thick tin from a tin can lid.

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6311
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  1/2A Nut Sat Dec 09, 2017 4:04 am

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Nano_i11

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Nano_i12


Small Cox Logo
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  1/2A Nut Sun Dec 10, 2017 10:22 pm

http://uterc.org/node/1578

2016-02-13 USA UteRC Indoor Tether Racing
Tue, 2016-02-16 15:22 — Ed Stimpson

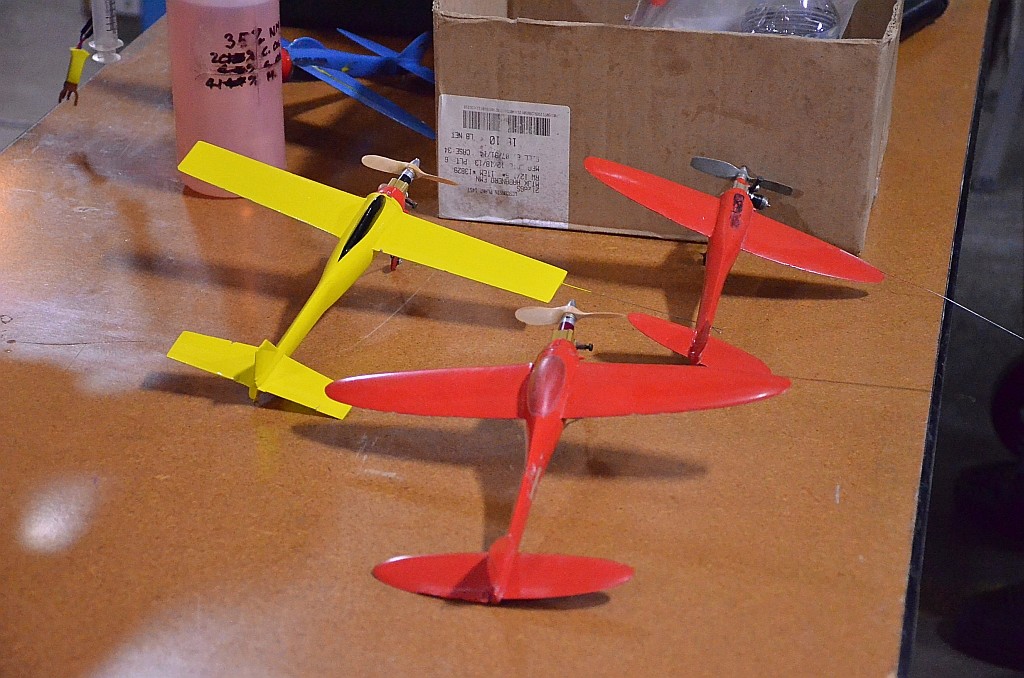

The Utah State Aeromodelers invited the UteRC club to witness the raw speed of an indoor Tether Race on Feb. 13th. The planes have 1/8" inch thick x 12" wingspans with no controls and are powered by Cox TD .020 engines flying on the end of a 10-ft. steel tether line from a 2-ft. high pylon in the center of a 20-ft. circle. Top speed of the day was over 70 MPH in the 1/8 of a mile distance of 10 laps.

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Indoor10


Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 51c46410

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Gordon10



1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  getback Mon Dec 11, 2017 8:26 am

Man those are some really small planes on short lines hauling ass Thumbs Up I see there are NO videos of this event ? Small Cox Logo
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10439
Join date : 2013-01-18
Age : 67
Location : julian , NC

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  1/2A Nut Mon Dec 11, 2017 9:27 am

Just horrible to post and no vid a must these days, someone should have filmed with a smart phone
at a minimum lol. I hoped by posting this perhaps a member on here would pipe in with more info and vid link.
Photos are better than nothing of course, but we have become spoiled with vid lol Popcorn

The one on the upper right looks like it might be a TD .010 based on the prop and size of the plane..

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Indoor11
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  1/2A Nut Tue Dec 19, 2017 8:46 am

New project NANO III

Has washout in the wing tips 28x2.25" wing 87.5 sq. in.

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6411

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6410

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6412

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Nano_i14
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  1/2A Nut Sun Dec 24, 2017 7:24 am

Some progress pics.

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Nano_i15

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6415

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6414


My new 1oz tank with brass pressure nipple for a clunk very low weight.
Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 1oz_mi10


Christmas Tree Lighting The Tree Santa Christmas Tree
Rudolph Bad Xmas Gift Rudolph
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  getback Sun Dec 24, 2017 7:59 am

Brad , i see you glue your fuel tanks in why do you not put any foam around they (other than lack of space ) Nice weight on the tank by the way .
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10439
Join date : 2013-01-18
Age : 67
Location : julian , NC

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  1/2A Nut Sun Dec 24, 2017 1:33 pm

The tank controls the width of the plane and becomes a former, it must not move should I nose it in hard.
There is no room for more fuel this one will run for about 6.4 mins with a screaming TD.


About 4 mins. with this .05 car engine. Has done 36.7k with the HQ 4x4.5 / 148mph with the .09 size DART this smaller leaner plane will bust 155 with ease. Will use the TD .05 first want to achieve 130 with it for posterity.  Rudolph


Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6416


Break thru Published on Oct 22, 2017   Small Cox Logo

Tee Dee RC .050 - HQ Carbon 4x4.5
Best static peak 27,051 / .164hp / 122w / 8.5oz thrust / 115 mph
Nelson plug / aluminum carb body / pressure tap on muffler.

Engines on the nose in this pic.

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6417


Last edited by 1/2A Nut on Mon Dec 25, 2017 9:10 am; edited 1 time in total
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  getback Mon Dec 25, 2017 7:48 am

Well that makes since to use as a former , Man that's going to bee Hott at 155 !! I was thinking of this but maybe NOT with these guys !? DAMMIT! lol!
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10439
Join date : 2013-01-18
Age : 67
Location : julian , NC

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  1/2A Nut Mon Dec 25, 2017 11:09 pm

Yessa should be a heart thumper Rudolph

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6420


Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6419


Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6418
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  1/2A Nut Tue Dec 26, 2017 7:10 pm

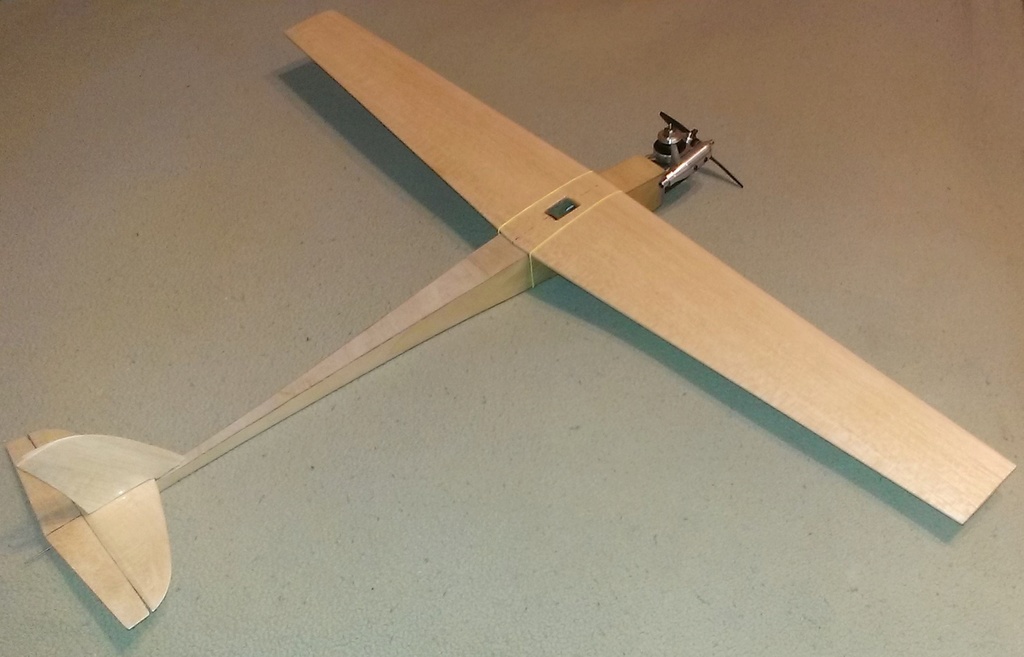

With the heavy Cox muffler my efforts to keep the weight down has been difficult.
Did a weigh in as shown in pic including the aileron servo the 223g or 7.8oz.
If I forego the muffler the plane drops 19.3g to 7.18 oz.

Not too shabby considering the all ply and spruce fuselage adds more weight over typical
balsa worth it as it is rock solid. The CG worked out great no changes to the layout will be needed.

The tail surface are made out of the SIG airfoil balsa sanded to created a fully symmetrical airfoil.
The long tail moment and airfoils will stabilize the wing allowing it to lock in very well.
A bit of forced perspective at play here with the camera angles.

Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6421


Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6422
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  balogh Wed Dec 27, 2017 1:06 am

Very slender plane Brad..I still wonder why the glow plug which is a power killer instead of the stock hc head?
balogh
balogh
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 4958
Join date : 2011-11-06
Age : 66
Location : Budapest Hungary

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  1/2A Nut Wed Dec 27, 2017 1:57 am

Ply treatment to the center section top and bottom, will keep the rubber bands
from crushing the softer balsa and strengthen around the cutout for the flush
mounted aileron servo.
Cox .01 /.02 /.05 /.09 /.15 Speed Planes  - Page 4 Imag6423

Galbreath Head and Nelson plug results:

Tee Dee RC .050 - All Carbon 4 x 4.5 speed prop.
Best static peak 27,051 / .164hp / 122w / 8.5oz thrust / 115 mph
Nelson plug / aluminum carb body / pressure tap on muffler.





Bad Xmas Gift Christmas Tree Rudolph Lighting The Tree Santa Christmas Tree


Last edited by 1/2A Nut on Wed Dec 27, 2017 3:01 am; edited 3 times in total
1/2A Nut
1/2A Nut
Top Poster
Top Poster

Posts : 3536
Join date : 2013-10-20
Age : 61
Location : Brad in Texas

Back to top Go down

Happy Re: Cox .01 /.02 /.05 /.09 /.15 Speed Planes

Post  Sponsored content


Sponsored content


Back to top Go down

Page 4 of 30 Previous  1, 2, 3, 4, 5 ... 17 ... 30  Next

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
