Post  ian1954 Sun Aug 04, 2019 6:34 pm

I still had the plan for the original KK Radian I built for the endurance contest which was flown RTP with a Cox medallion 049. I liked that little plane and so I decided to build another.

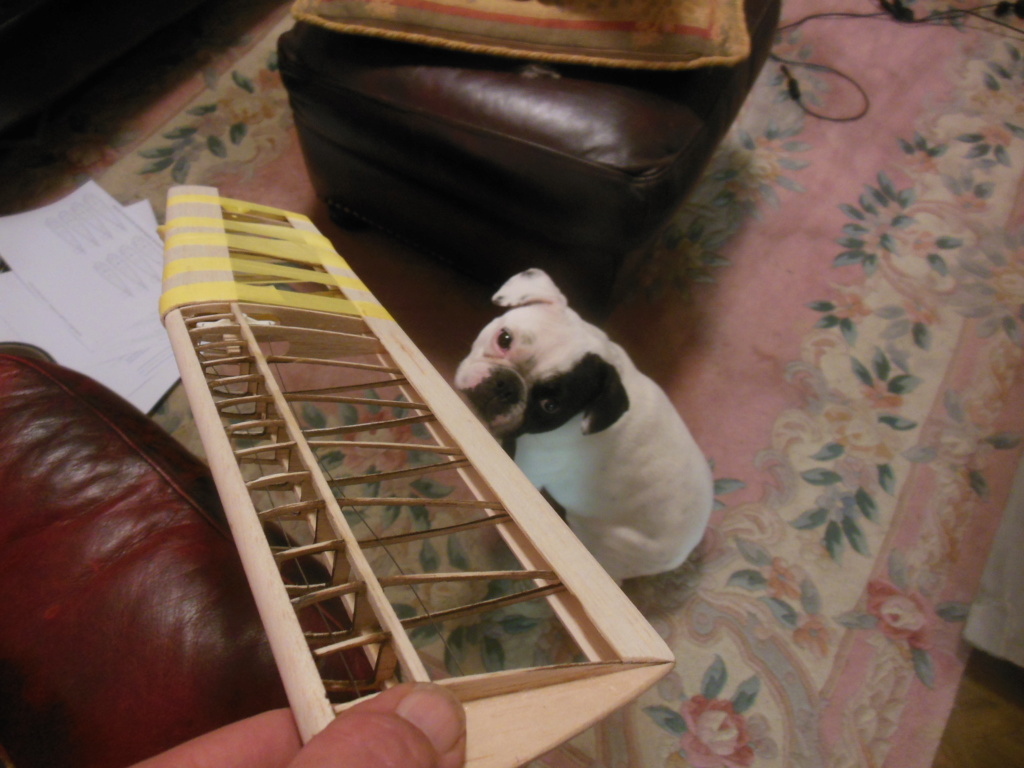

The plan didn't have the ribs on it and so I used DevWingCam to produce a wing and I used my Stepcraft laser cutter to form the ribs. I modified the wing to give it cap strips and the lightesr ribs (I don't think I could cut these with a knife!). Not the same as the kit but it turned out a lot stronger.

KK Radian + Kk_rad10

KK Radian + Kk_rad11

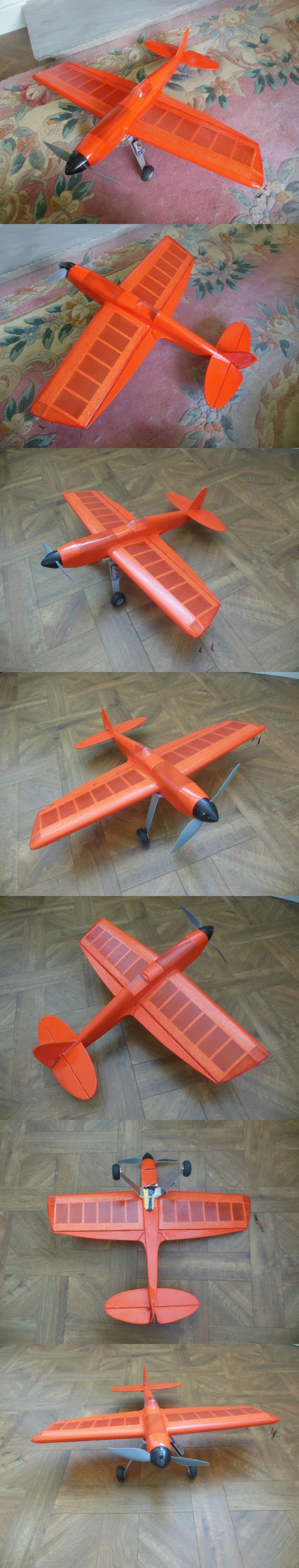

These time I used orange tissue and dope. It is electric with a timer but I have just managed to snaffle two Radian kits. One with have a PAW .8cc diesel and the other - one of my Cox TD 049 diesels. As mentioned previously, silencers are required and the Cox TD is not a happy bunny with one.

KK Radian + Kk_rad12

Not yet flown but ready to.
ian1954
ian1954
Diamond Member
Diamond Member

Posts : 2688
Join date : 2011-11-16
Age : 70
Location : England

Back to top Go down

KK Radian + Empty Re: KK Radian +

Post  944_Jim Sun Aug 04, 2019 9:34 pm

Pretty! I love the Radian and hope to build one some day. There is a thread in Control Line in RCG, and a YouTube video of one in flight.

Good job, friend!
944_Jim
944_Jim
Diamond Member
Diamond Member

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 2022
Join date : 2017-02-08
Age : 59
Location : NE MS

Back to top Go down

KK Radian + Empty Re: KK Radian +

Post  dirk gently Mon Aug 05, 2019 1:22 am

Great looking plane.
Are the hollow ribs cut from a single piece of balsa or is the top part cut separately from the bottom? In the former case I would be worried about grain runout.
dirk gently
dirk gently
Gold Member
Gold Member

Posts : 430
Join date : 2012-02-03
Age : 42
Location : Poznań

Back to top Go down

KK Radian + Empty Re: KK Radian +

Post  ian1954 Mon Aug 05, 2019 6:15 am

dirk gently wrote:Great looking plane.
Are the hollow ribs cut from a single piece of balsa or is the top part cut separately from the bottom? In the former case I would be worried about grain runout.

Hi Dirk,

Yes they are cut from one piece and your worry about grain run out is an extremely valid comment for anyone trying to emulate this. I am always "experimenting" with builds mainly by copying other chaps ideas and modifying them.

It would be easy for me to dismiss this comment but there are other factors in play that I haven't explained.

Producing these ribs wasn't as easy as I thought. Setting up the laser to produce clean cuts started off more than a little hit and miss - trialling cutting speed, laser power and the number of passes. I quickly found out that balsa selection played an important part in setting up.

After trial runs with some of my "grotty"balsa  wood offcuts - I thought I had reached perfection. Mapped out all the ribs on a sheet of 1/16th and started the run,

Disaster - I thought I had selected a medium balsa sheet by weight but this sheet had very soft and very hard spots in it. Clean cuts - no! Charred mess in places and bare penetration in others, Even after careful removal, some ribs were just too delicate - mainly because of grain runout particulary in the soft areas.

I looked at each rib and noted the grain on the successful cuts and then was more careful with sheet selection.

The next run was perfect and I checked each rib before using it.

Here is one from my test runs,

KK Radian + Kk_rad13

Takes quite a twist!

The weak spot is the centre and the front strut but my wing picture doesn't show the final D front centre section and the cross grain rib supports further out.

The cap strips add more strength and the final wing is well strong but light.

It is also one of the very few planes I have built where I haven't broken a rib during construction but I think that was down to me taking more care.

The other thing to take into account is that this is a small plane.

KK Radian + Peacem10
ian1954
ian1954
Diamond Member
Diamond Member

Posts : 2688
Join date : 2011-11-16
Age : 70
Location : England

Back to top Go down

KK Radian + Empty Re: KK Radian +

Post  944_Jim Mon Aug 05, 2019 6:53 am

Ummm, help me out please. What is "grain run-out?"
944_Jim
944_Jim
Diamond Member
Diamond Member

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 2022
Join date : 2017-02-08
Age : 59
Location : NE MS

Back to top Go down

KK Radian + Empty Re: KK Radian +

Post  ian1954 Mon Aug 05, 2019 7:35 am

944_Jim wrote:Ummm, help me out please. What is "grain run-out?"

When you have a thin piece of wood like that on the rear slope of the rib - the grain doesn't follow the entire length or shape of the curve of the piece. It cuts across in many places - a bit like cutting a spar cross grain rather than with the grain.
ian1954
ian1954
Diamond Member
Diamond Member

Posts : 2688
Join date : 2011-11-16
Age : 70
Location : England

Back to top Go down

KK Radian + Empty Re: KK Radian +

Post  dirk gently Mon Aug 05, 2019 7:45 am

944_Jim wrote:Ummm, help me out please. What is "grain run-out?"

I haven't been able to find a video that discusses grain runout in aeromodelling context, so instead here's luthier Dan Erlewine doing a great job explaining it (the interesting part starts at 1:20):


In case anyone cares, he's the one that made Albert King's custom Flying Vs that Joe Bonamassa now plays.
dirk gently
dirk gently
Gold Member
Gold Member

Posts : 430
Join date : 2012-02-03
Age : 42
Location : Poznań

Back to top Go down

KK Radian + Empty Re: KK Radian +

Post  dirk gently Mon Aug 05, 2019 8:00 am

ian1954 wrote:
The cap strips add more strength and the final wing is well strong but light.

I now realise I failed to comprehend there were cap strips, which make grain runout a lot less of an issue.
dirk gently
dirk gently
Gold Member
Gold Member

Posts : 430
Join date : 2012-02-03
Age : 42
Location : Poznań

Back to top Go down

KK Radian + Empty Re: KK Radian +

Post  getback Mon Aug 05, 2019 8:37 am

Great looking build and plane , got me looking at Lazers again , the Stepcraft over here is about 400 usd bucks . Have you had good success with it ? Those ribs are thin ! Fishing
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10441
Join date : 2013-01-18
Age : 67
Location : julian , NC

Back to top Go down

KK Radian + Empty Re: KK Radian +

Post  ian1954 Mon Aug 05, 2019 11:04 am

getback wrote:Great looking build and plane , got me looking at Lazers again , the Stepcraft over here is about 400 usd bucks . Have you had good success with it ? Those ribs are thin ! Fishing

If you are looking for a laser cutter - peruse the Banggood site

https://www.banggood.com/search/laser-cutter-machine.html

The "starting price?" for the smallest Stepcraft machine is $1799 to $4999. I bought mine years ago but it has cost a fortune to upgrade and I have to wait months for parts and accessories. It is made and packaged in China now. While it is a good all rounder - it is cheaper to buy dedicated machines.

The laser is not very powerful only 3W and now costs Euro 605 as an add on. Most complete 10W laser cutters are under that price. I also don't think they sell it in the USA.

https://www.stepcraft.us/

My Stepcraft is the first version and there are no dedicated spares for it now. When they bring out a new model - the Stepcraft 2 and now the Q series - support for the older systems disappears. When I first got it - I was very pleased - now, it is one of my legacy tools and merely OK.


ian1954
ian1954
Diamond Member
Diamond Member

Posts : 2688
Join date : 2011-11-16
Age : 70
Location : England

Back to top Go down

KK Radian + Empty Re: KK Radian +

Post  getback Mon Aug 05, 2019 4:17 pm

Well with that said at 2K i don't know if i need one that bad LOL But after reading about the D420 and the surface area is very good at 16?X11?" and will do all i would ever need , with just the thought of dropping that much in it for me i would have to figure a way to help pay for itself !? Very Happy And the learning curve / even though i have a friend that is computer savvy Very Happy But don't want something i have to Keep upgrading to do what i want Huh... Thank for your input Ian ! Hand Shake
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10441
Join date : 2013-01-18
Age : 67
Location : julian , NC

Back to top Go down
