Post  Levent Suberk Tue Jan 23, 2018 1:31 pm

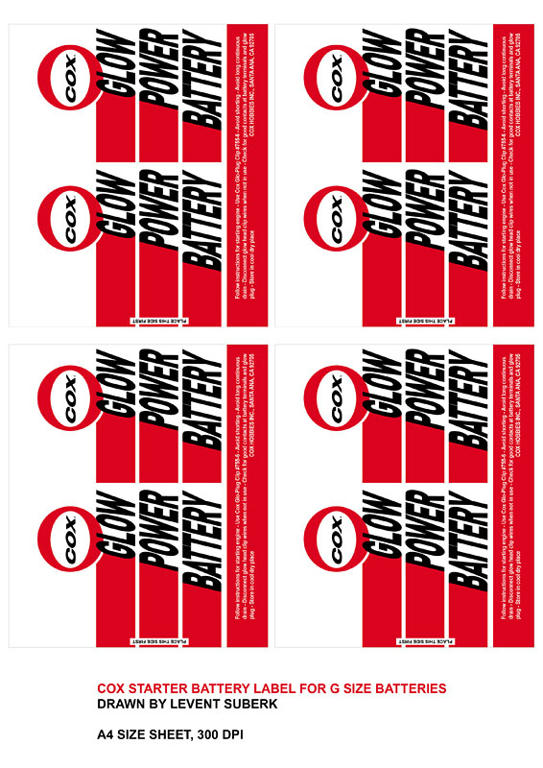

Printable label for G size Cox starter battery. A4 page can be found in Instructions Sheets page.

Printable Label for Cox G Size Starter Battery Ki58rfy17qb0a8l6g

(For private use only. Can not be sold)


Last edited by Levent Suberk on Mon Sep 19, 2022 6:15 am; edited 3 times in total
Levent Suberk
Levent Suberk
Diamond Member
Diamond Member

Posts : 2265
Join date : 2017-12-24
Location : Türkiye

Back to top Go down

Printable Label for Cox G Size Starter Battery Empty Re: Printable Label for Cox G Size Starter Battery

Post  halfpilot Tue Jan 23, 2018 2:25 pm

Excellent work, Levent! Also very pleased to see a picture in that advert of the G size battery clamp / terminal thing I found the other day. Any chance I could see a more full copy of that advert, please? Oops, just noticed you say it's a file on the instructions sheet page.

I have also been working on some Cox reprints. I scanned in and fixed up a parts packet I received and have been printing them out for my own use.

Printable Label for Cox G Size Starter Battery Dsc_0310


Last edited by ThermalSniffer on Tue Jan 23, 2018 2:39 pm; edited 1 time in total
halfpilot
halfpilot
Formerly known as:
ThermalSniffer

Formerly known as:ThermalSniffer

Posts : 96
Join date : 2011-09-06
Location : England

Back to top Go down

Printable Label for Cox G Size Starter Battery Empty Re: Printable Label for Cox G Size Starter Battery

Post  Levent Suberk Tue Jan 23, 2018 2:38 pm

Thanks. You printed very good looking items.

This catalog can be downloaded at:

https://www.coxengineforum.com/h24-instruction-sheets

Please see the Cox Yearly Product Catalogs in this page.
Levent Suberk
Levent Suberk
Diamond Member
Diamond Member

Posts : 2265
Join date : 2017-12-24
Location : Türkiye

Back to top Go down

Printable Label for Cox G Size Starter Battery Empty Re: Printable Label for Cox G Size Starter Battery

Post  Admin Tue Jan 23, 2018 7:26 pm

Once again, very nice work!

Here's the dimensions of a "G" cell and a document I came across with instructions on making a D to G adapter.

Printable Label for Cox G Size Starter Battery G_cell10

https://www.scribd.com/document/129034387/D-Cell-to-G-Cell-Adapter-RevA

_________________
-Jacob


Admin
Admin
Administrator

Posts : 6564
Join date : 2010-07-27
Location : Roseville, Minnesota

http://sites.google.com/site/coxenginecollection/

Back to top Go down

Printable Label for Cox G Size Starter Battery Empty Re: Printable Label for Cox G Size Starter Battery

Post  NEW222 Wed Jan 24, 2018 4:26 pm

Admin wrote:Once again, very nice work!

Here's the dimensions of a "G" cell and a document I came across with instructions on making a D to G adapter.

Printable Label for Cox G Size Starter Battery G_cell10

https://www.scribd.com/document/129034387/D-Cell-to-G-Cell-Adapter-RevA

If I read your diagram correctly, it is only a single 'D' cell battery? Will a single battery have enough umpf to start an engine? I would like to try this out. Thnak you.
NEW222
NEW222
Top Poster
Top Poster

Posts : 3896
Join date : 2011-08-13
Age : 46
Location : oakbank, mb

Back to top Go down

Printable Label for Cox G Size Starter Battery Empty Re: Printable Label for Cox G Size Starter Battery

Post  Levent Suberk Thu Jan 25, 2018 4:53 am

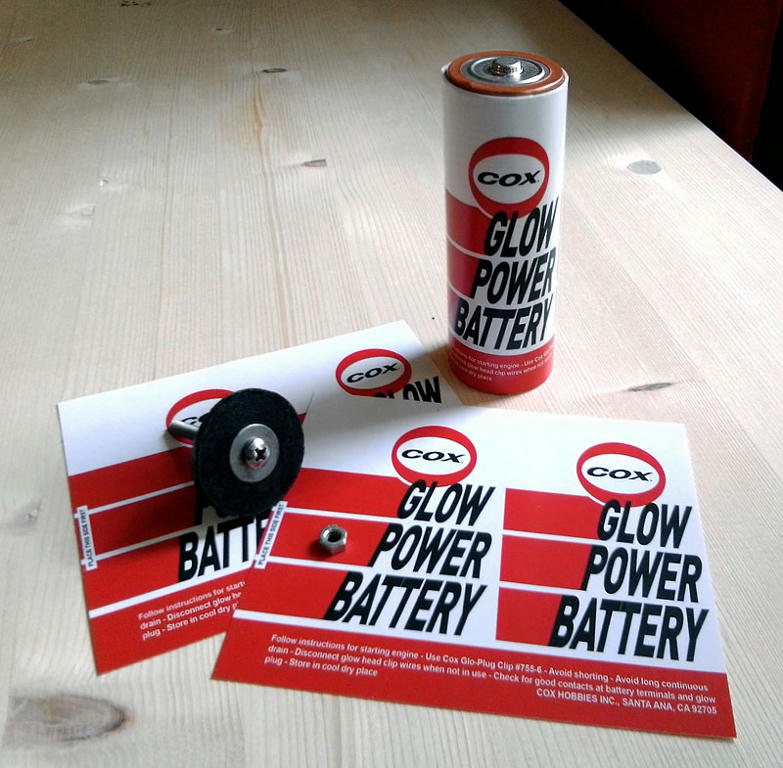

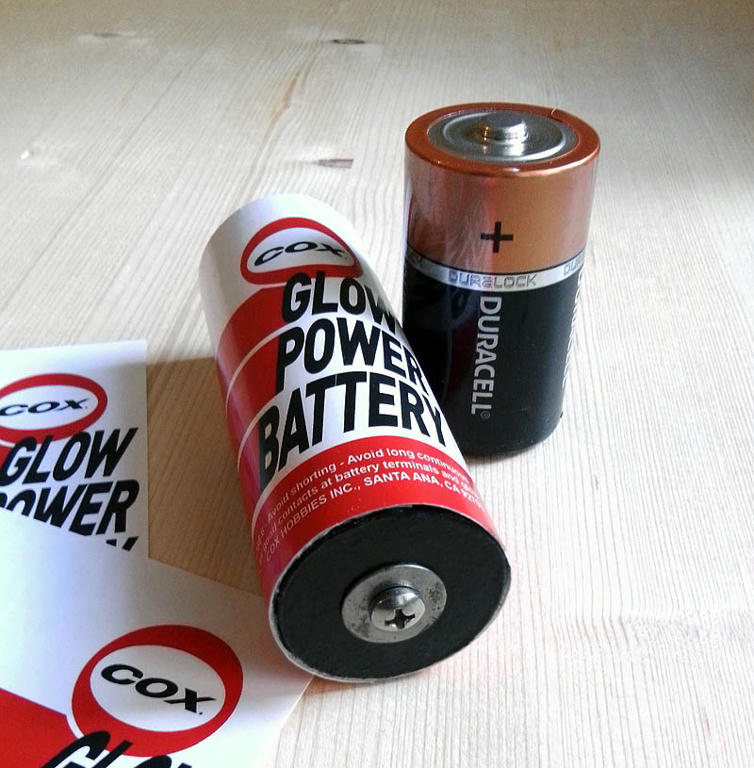

I made the Cox G size starter battery box in this way, without soldering: I cut 4 inches by 10 inches thin cardboard and rolled the cardboard around two D size batteries to make a tube. I applied white glue on cardboard while rolling. White glue strengthens tube wall, so no cardboard washers are needed. Then I taped the seam. I printed label on sticker sheet and applied on tube. I cut a circle from 1/8 inch (3 mm) thick plastic sheet for base and opened a hole for bolt. That circle sanded for a snug fit to box. Bolt can be cut with a cutting disc attached to moto tool to adjust it's length about approximately 1¾ ins (45 mm). Cutted screw tip cleaned and smoothed with a file. Bolt, a washer and nut fitted to the base, then base glued in underside of cardboard tube. I slipped D size battery into box. Simply jolt the box to remove battery.

Printable Label for Cox G Size Starter Battery Vpy1lrnjnsddad36g

Printable Label for Cox G Size Starter Battery 4zxhtfxnre13c7s6g
Levent Suberk
Levent Suberk
Diamond Member
Diamond Member

Posts : 2265
Join date : 2017-12-24
Location : Türkiye

Back to top Go down

Printable Label for Cox G Size Starter Battery Empty Re: Printable Label for Cox G Size Starter Battery

Post  Admin Thu Jan 25, 2018 3:36 pm

NEW222 wrote:

If I read your diagram correctly, it is only a single 'D' cell battery? Will a single battery have enough umpf to start an engine? I would like to try this out. Thnak you.

A single D cell will work for a while...not long though.

According to technical documents from Energizer, their standard alkaline "D" cell has an average capacity of about 17,000 mAh (to 0.8v at 25mA cont. drain) and an alkaline "F" cell (can be sourced from a 6v lantern battery) has an average capacity of about 26,000 mAh (to 0.8v at 25mA cont. drain).

Could also go rechargeable, one of those rechargeable glow igniters would probably fit in a "G" cell with minor modifications.

_________________
-Jacob


Admin
Admin
Administrator

Posts : 6564
Join date : 2010-07-27
Location : Roseville, Minnesota

http://sites.google.com/site/coxenginecollection/

Back to top Go down
