Idea of a model for Cox Tee Dee 0.051 and ...Medallion 0.049!Flight

After a few hours of work has been ready the Medallion 0.049 r / c .... soon I will continue with the Cox Babe Bee 0.049...




A new glow plug, cone and propeller and is ready to go!

Another great engine !, already underway, excellent result, I made a good purchase!

Beautiful job on the airplane Mauricio! Congratulations on rescuing two more Cox engines also!

I also rescued two Cox engines recently..

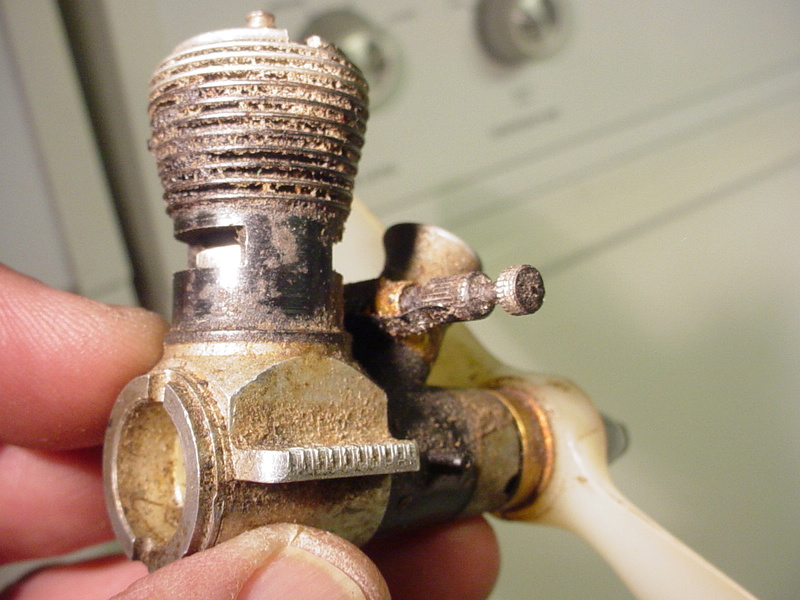

a very dirty Tee Dee .09 (my 1st... I hope the glowhead works.. because I have no spare parts)




and a Babe Bee.. with missing needle. (I have spares )



I have not seen this back-plate vent-style before..



also it has the wrong starter-spring. I have the proper one.

I hope your rescued Babe Bee will run! Let us know how it goes!

Roddie, that Babe Bee is just like my first Bee that I bought new in 1983 or so, complete with the brass drive plate. Actually that is the correct spring for it, it should have a red plastic cam on it that just tightens between the prop and the drive plate.

That vent style is typical for the last metal backplates, not very common... I have a couple of engines like that, and unlike most bees, they have the brass drive plate.

The red cam plate can be seen on this pic, it has just a small round hole instead of a hex shape, and a stop tab for the prop blade.




And Mauricio, once again, beautiful craftsmanship on the model! Thanks for posting the details

KariFS wrote:


And Mauricio, once again, beautiful craftsmanship on the model! Thanks for posting the details

And here is the Babe bee ready...

roddie wrote:Beautiful job on the airplane Mauricio! Congratulations on rescuing two more Cox engines also!

I also rescued two Cox engines recently..

a very dirty Tee Dee .09 (my 1st... I hope the glowhead works.. because I have no spare parts)




and a Babe Bee.. with missing needle. (I have spares )



I have not seen this back-plate vent-style before..



also it has the wrong starter-spring. I have the proper one.

I hope your rescued Babe Bee will run! Let us know how it goes!

Roddie, you're going to have a nice restoration job with those engines! I hope to see them go !!

Ken Cook wrote:             Mauricio, what were you using to clean those engines in? Apparently, it does a very nice job at doing so.

Ken, thank you for your appreciation, I gladly tell you.
The liquid I use to clean my engines is: Automotive coolant containing ethylene glycol.
The way to use it is as follows:
1) In a metal container, place enough liquid to cover the engine.
2) Put it on a stove.
3) When the liquid begins to bubble by its own temperature, turn off the fire of the stove and introduce the engine to clean.
4) It is not necessary to remove plastics and rubber, this liquid does not deteriorate those elements.
5) It is better if the engine parts are placed separately and not the engine armored, that is to be able to do a deep cleaning.
6) Wait 30 minutes.
7) Remove each piece and with a plastic brush begins to remove the dirt, will observe how the dirt is removed easily.
Repeat the operation as many times as necessary.
9) Once the parts are clean, submerge them in thinner (NOT PLASTICO NO RUBBER) only metal.
10) With a brush finish the parts, rinse in the thinner and dry the pieces.
11) Lubricate parts with light oil.
You will see incredible results.
Here I leave a video I made a few years ago with a gasoline engine of 55 cubic centimeters. I hope it's useful.



Summary of photos: cleaning and changing bearings OS FS 70 4T

Finally the other engine assigned to one of these models, will be the newly incorporated Medallion 0.049:


After reinstating the Cox Medallion 0.049 and the Cox Babe Bee 0.049, I continue with the models ....

Continuing:

Looking very nice Mauricio!  I love small model airplanes.. and am enjoying looking at the photos as this one progresses. I wish we lived closer to each other.. because I have a very large supply of balsawood. I can only imagine the models that you could build with it. Is balsa expensive where you live? Is it easy to source? I don't know if balsa trees grow in other parts of the world.. but I believe that most of the balsawood that we buy here in the U.S. comes from Central/South America.

akjgardner wrote:I like building and flying the guillows series 400 airplanes. If I build them light I can use a babe bee. I have not tried a medallion yet. You can find them for $35.00 at AC Supply with free shipping with a purchase over $100.00. (usa) They are very nice laser cut kits

Hello, yes, I know and I have assembled some Guillows kits, they are very good, only that at the moment I am looking forward to do from scratch, even modifying something already existing to give it the best option and configuration to my liking, this is to place Radio equipment and engine, and that the model does not miss flying characteristics! Thanks for your message!

roddie wrote:Looking very nice Mauricio!  I love small model airplanes.. and am enjoying looking at the photos as this one progresses. I wish we lived closer to each other.. because I have a very large supply of balsawood. I can only imagine the models that you could build with it. Is balsa expensive where you live? Is it easy to source? I don't know if balsa trees grow in other parts of the world.. but I believe that most of the balsawood that we buy here in the U.S. comes from Central/South America.

Hi friend Roddie, I'm very happy to know that the work I'm doing is pleasant.
I also think like You, I would like, much to live closer and share even a few flying evenings! .... even I think we could put together several models together .... but at least we can share in this way ... Who knows, maybe I will visit the US, and we know each other ... it would be a pleasure !.
Balsa wood usually comes from Ecuador (Central America), although I believe that they have long been planted-raft trees elsewhere.
To give you an example of a (plate - plate) raft 1.5 mm thick by 80 mm wide and 1000 mm long round the AR $ 25.00, which is about US $ 1.47.

Medallion 0.049 & Cox Tee Dee 0.051

balogh wrote:I like the low idles you reach with the exhaust throttle rings, Mauricio.

Does you Medallion and TD051 have a thick wall cylinder, or the stepped wall cylinder? These latter do not allow the same, high backpressure when throttled as the thick-wall cylinders, where the contact surface between the cylinder neck and the ring is wider and therefore the exhaust throttle is more efficient.

Hello Andras !, the cylinders of both engines are thick, not staggered, the rings in this case are original Cox, I also like how they work, I do not know why, but the Medallion attracts me a lot!

I glued the semialas with epoxy (it is necessary to place the vibrating reinforcement patch ..

Aileron control system...

Aileron control clamp....
